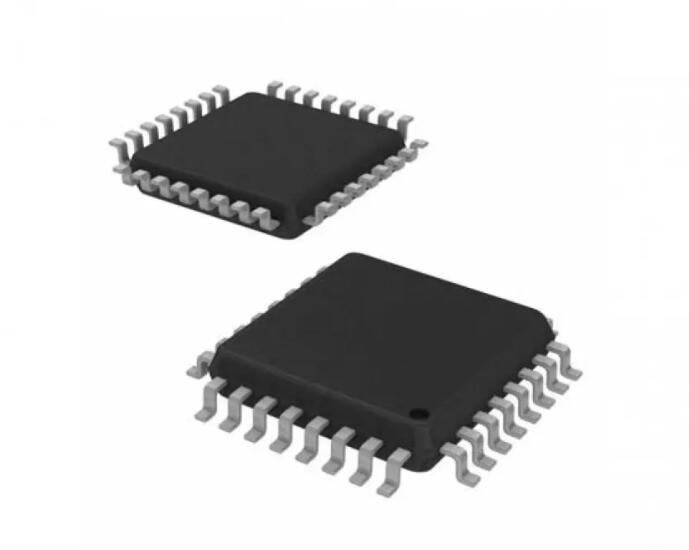

Microcontroller/MCU - APT32F1102
T-Head 32-bit CPU core (2-stage pipeline) • On-chip 64KB program flash, 2KB data flash
Contains 8KB SRAM, usable for stack, data storage, and code storage
Contains 256 bytes non-volatile SRAM, usable for saving CPU context and user data during ultra-low-power operation
Operating temperature: -40 to 85°C
Operating voltage range: 1.8 to 5.5V
Operating frequency: 48MHz
Product Introduction
APT32F1102Developed by AppoT based on the T-Head Microsystems CPU core, this is a 32-bit high-performance, low-cost microcontroller; manufactured with embedded Flash technology, with rich internal analog resources, targeted at applications such as industrial control, small home appliances, consumer electronics, and wearable devices.
I.Microcontroller/MCU -Features of APT32F1102:
T-Head 32-bit CPU core (2-stage pipeline) • On-chip 64KB program flash, 2KB data flash
Contains 8KB SRAM, usable for stack, data storage, and code storage
Contains 256 bytes non-volatile SRAM, usable for saving CPU context and user data during ultra-low-power operation
Operating temperature: -40 to 85°C
Operating voltage range: 1.8 to 5.5V
Operating frequency: 48MHz
Interrupt controller: supports dynamically configurable nested interrupts (NVIC)
Enhanced clock and power controller (SYSCON)
4-channel Direct Memory Access controller (DMA)
Hardware divider (HWDIV)
CRC controller (CRC)
Flexible event trigger selection controller (ETCB)
Packages: 48-LQFP, 48-QFN, 32-LQFP,32-QFN、28-SOP
II.Microcontroller/MCU -Applications of APT32F1102:
Industrial control
Small home appliances
Consumer electronics
Wearable devices, etc.
