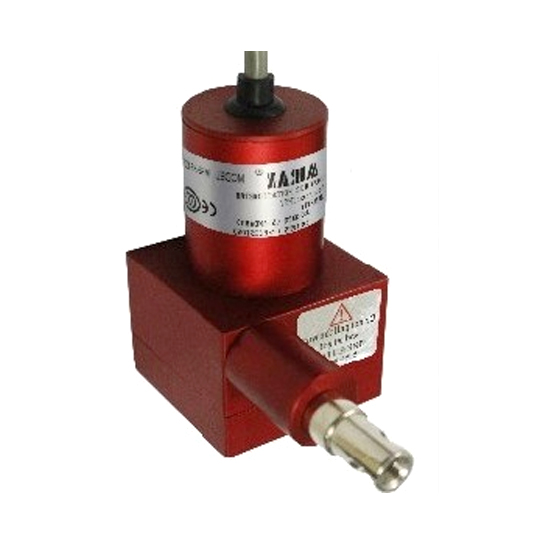

Milang Technology Draw Wire Displacement Sensor - MPS-XXS Series

Features of MPS-XXS Series Draw Wire Displacement Sensor:
1. Compact structure, small installation space.
2. Measuring stroke length (100-1000mm), high accuracy (0.3%FS), protection class IP65.
3. Housing and reel are anti-corrosion treated, traction rope is stainless steel coated with Teflon, can work in harsh environments.
4. Optional output modes: resistive, voltage, current, incremental pulse, absolute pulse

Detailed Introduction of MPS-XXS Series Draw Wire Displacement Sensor:
1. Output mode (suffix): R resistive, V voltage, A current, P1 incremental pulse, P2 absolute pulse
2. Effective stroke: 100-1000mm
3. Linearity accuracy: (R, V, A types: 0.3%-0.2%FS), (P1, P2 types: ±1 pulse FS, optional)
4. Repeatability accuracy: (R, V, A types: 0.03%-0.02%FS), (P1, P2 types: ±1 pulse FS, optional)
5. Supply voltage: R type: ~24VDC; V, A types: 24VDC; P1, P2 types: 5-24VDC;
6. Output characteristics: R type: 0-10KΩ; V type: 0-10VDC; A type: 4-20mA;
P1, P2 types: 5VDC voltage type, current type, push-pull, differential;
7. Hysteresis: R, V, A types: none; P1, P2 types: 10KHz-50KHz;
8. Maximum allowable pulling speed: 1000mm/s;
9. Traction force: Max. 700g
