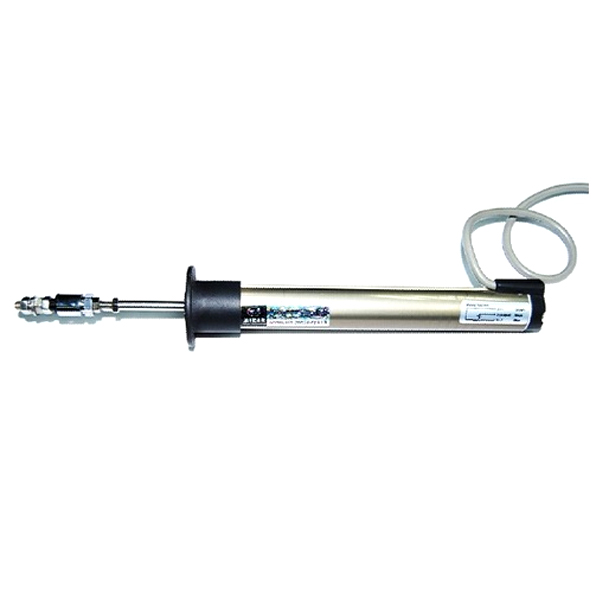

Milang Technology Flange Displacement Sensor - KPF
Effective stroke 10mm to 300mm
Accuracy 0.25% to 0.08% FS
Resolution: Infinite
Operating speed: 5m/s
Operating temperature range: -40 to 125°C
Flange-mounted fixed installation structure
Anodized housing surface, corrosion-resistant
Sealing rating IP67
Product Introduction
KPF Flange Displacement Sensor Description:
The KPF linear displacement sensor features a flange-mounted fixed installation structure, with an effective stroke of 10mm to 300mm, 2mm buffer stroke at both ends, and accuracy of 0.25% to 0.08% FS. The housing surface is anodized for corrosion resistance; built-in carbon film potentiometer measurement unit, no temperature drift, long lifespan. Sealing rating IP67, available with direct cable exit or five-pin connector output, suitable for most general applications, especially for occasions with limited installation space, where the body cannot be fixed, and movement has swing, no alignment required.
KPF Flange Displacement Sensor Detailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100-200mm effective stroke); 0.08 (225-300mm effective stroke);
5. Resolution: Infinite;
6. Operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 80mm; Dimension B = effective stroke + 64mm;
KPF Flange Displacement Sensor Installation Dimensions:
