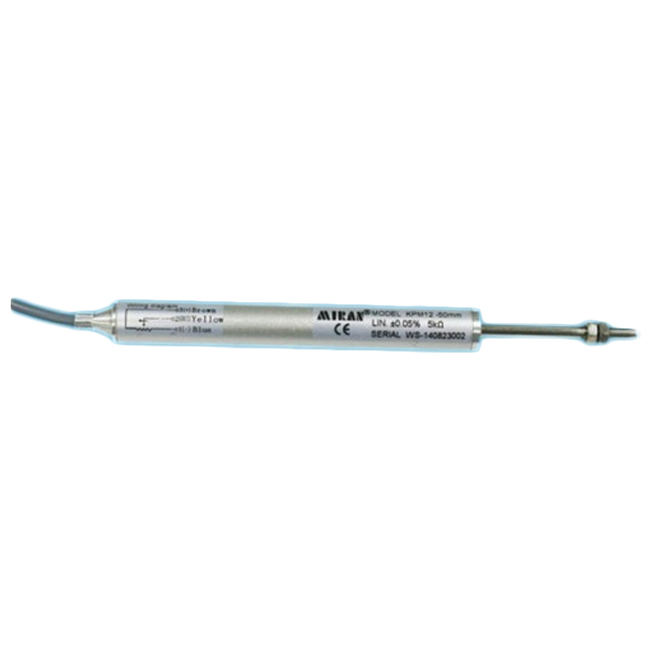

Milang Technology Electronic Ruler - KPM12
Effective Stroke Specifications: 25 - 300mm
Mechanical Stroke: Effective stroke + 3mm (1.5mm buffer at each end)
Resistance (KΩ±10%): 1 (10～25mm effective stroke); 2 (50mm effective stroke); 5.0 (75～300mm effective stroke)
Resolution: Infinite resolution
Working Speed: 5m/s
Operating Temperature Range: -40～125°C
Product Introduction
Detailed parameters of KPM12 electronic ruler:
1. Effective stroke specifications (mm): 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): Effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10～25mm effective stroke); 2 (50mm effective stroke); 5.0 (75～300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10～25mm effective stroke); 0.15 (50～75mm effective stroke); 0.10 (100～200mm effective stroke); 0.08 (225～300mm effective stroke);
5. Resolution: Infinite resolution;
6. Working speed: 5m/s;
7. Operating temperature range: -40～125°C
