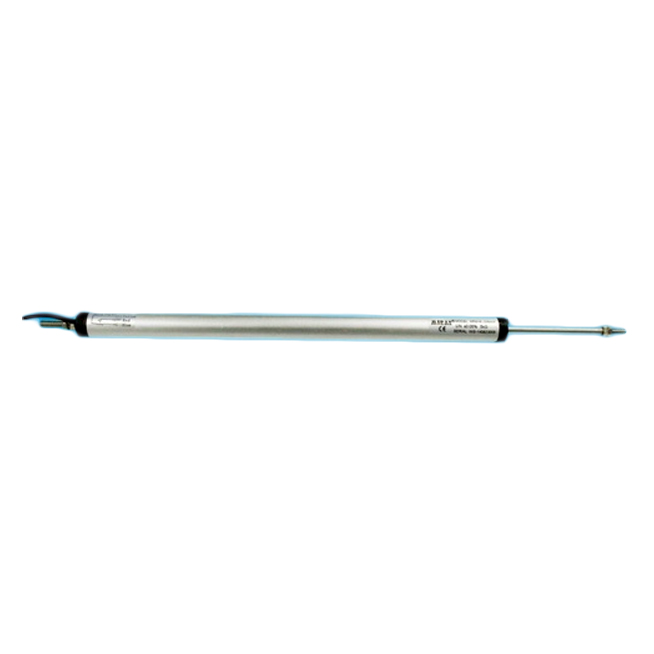

Milang Technology Electronic Ruler - KPM16
Effective stroke specifications: 25-300mm
Mechanical stroke: effective stroke + 3mm (1.5mm buffer at each end)
Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke)
Resolution: Infinite
Working speed: 5m/s
Operating temperature range: -40～125°C
Product Introduction
KPM16 electronic ruler linear displacement sensor KPM12 products.
Detailed parameters of KPM16 electronic ruler:
1. Effective stroke specifications (mm): 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100-200mm effective stroke); 0.08 (225-300mm effective stroke);
5. Resolution: Infinite;
6. Working speed: 5m/s;
7. Operating temperature range: -40～125°C
