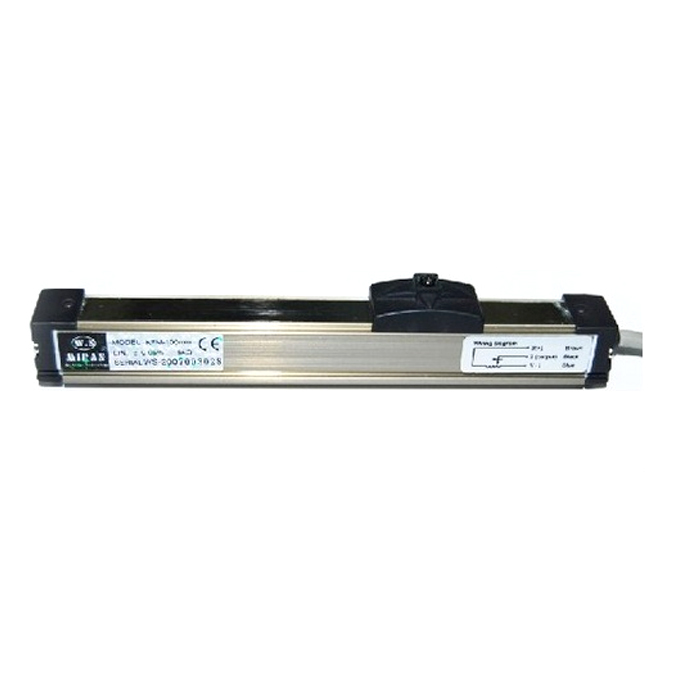

Milang Technology Mini Slider Sensor - KFM
Effective stroke 5mm~300mm
Accuracy 1%~0.08%FS
Resolution: Infinite
Operating speed: 5m/s
Operating temperature range: -40~125°C
Anodized housing surface for corrosion resistance
Built-in carbon film board, no temperature drift, long life
Sealing class IP54 (IP57 when installed downward)
Product Introduction
KFM Mini Slider Sensor Description:
KFM mini slider displacement sensor, effective stroke 5mm~300mm, 2mm buffer stroke at both ends, accuracy 1%~0.08%FS. The housing surface is anodized for corrosion resistance; built-in carbon film board, no temperature drift, long life; with automatic electrical grounding function. Sealing class IP54 (IP57 when installed downward), available with direct cable output or five-pin connector output, suitable for most general applications, especially for confined spaces and alignment-difficult situations; maximum allowable movement speed is 3m/s.
KFM Mini Slider Sensor Detailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10~25mm effective stroke); 2 (50mm effective stroke); 5.0 (75~300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10~25mm effective stroke); 0.15 (50~75mm effective stroke); 0.10 (100~200mm effective stroke); 0.08 (225~300mm effective stroke);
5. Resolution: Infinite;
6. Operating speed: 5m/s;
7. Operating temperature range: -40~125°C
8. Dimensions: A = effective stroke + 56mm
KFM Mini Slider Sensor Installation Dimensions:
