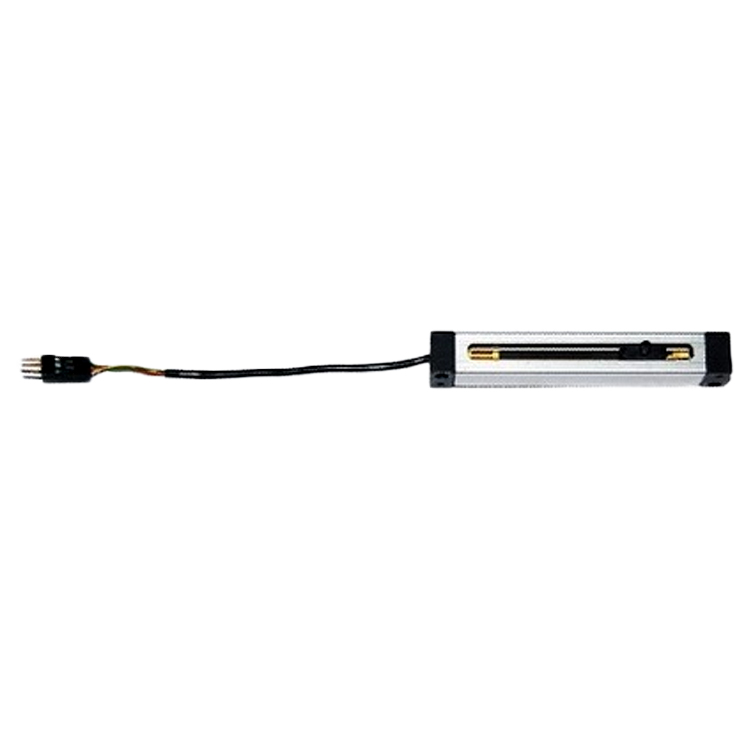

KSF Micro Slider Sensor Description:
KSF micro slider linear displacement sensor is compact in size, with stroke from 5mm to 50mm, widely used in micro control systems, such as servo control valve position detection and control, medical equipment, leather machinery, mold clamping control, IT equipment, paper machinery, textile machinery, ship steering systems, and other displacement detection applications.
KSF Micro Slider Sensor Detailed Parameters:
1. Effective stroke specification (mm): 50
2. Resistance (KΩ±10%): 5
3. Independent linearity accuracy (%): 0.3
4. Resolution: Infinite resolution;
5. Operating speed: 5m/s;
6. Operating temperature range: -30～125°C
7. Dimension: A = Effective stroke + 36mm
8. Dimension: B = Effective stroke + 29mm
KSF Micro Slider Sensor Installation Dimensions:
