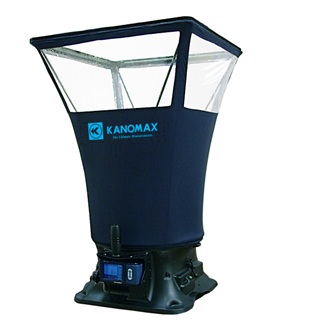

Multi-function Air Volume Hood - 6175
Simultaneous measurement of air volume, air velocity, differential pressure, temperature, and humidity
- Ultra-wide measurement range: 40-4300 m3/h
- Large storage capacity: 8000 sets
- Equipped with 3.5-inch LCD color screen
- Body can rotate 30° for easy data reading
- Smart phone App software for instrument operation, Bluetooth data transmission function
Product Introduction
Multi-function Air Volume Hood 6175 Product Features:
- Simultaneous measurement of air volume, air velocity, differential pressure, temperature, and humidity
- Ultra-wide measurement range:40-4300m3/h
- Large storage capacity:8000sets
- Equipped with3.5inch LCD color screen
- Body can rotate30° for easy data reading
- Smart phone App software for instrument operation, Bluetooth data transmission function
Multi-function Air Volume Hood 6175Technical Parameters:
| Name |
Air Volume Hood6715 |
Air Volume Hood6710 |
Air Volume Hood6705 |
|
| Air Volume |
Range |
40~4300m3/h |
40~3800m3/h |
|
| Accuracy |
of reading±3%±10m3/h |
of reading±3%±10m3/h（Air Volume＞85m3/h） |
±2FS |
|
| Resolution |
1m3/h |
|||
| Air Velocity |
Range |
0.15-40m/s(Pitot Tube)；0.15-15m/s(Velocity Matrix) |
|
|
| Accuracy |
of reading±3%±0.05m/s |
|||
| Resolution |
0.1 m/s( ≥ 10.0m/s)；0.01m/s( ≤ 9.99m/s ) |
|||
| Differential Pressure |
Range |
-2500~2500Pa |
|
|
| Accuracy |
of reading±0.25%±1Pa |
|||
| Resolution |
0.001Pa~1Pa |
|||
| Temperature |
Range |
0~50℃ |
0~60℃ |
|
| Accuracy |
±0.5℃ |
±0.5℃（at5~40℃accuracy within±0.3℃） |
||
| Resolution |
0.1℃ |
±0.1℃ |
||
| Humidity |
Range |
0~100％RH |
0~100％RH |
None |
| Accuracy |
±3%RH（10~90％RH） |
±3%RH（10~90％RH） |
||
| Resolution |
0.1％RH |
0.1％RH |
||
| Main Instrument |
LCD |
3.5-inch color screen（Manual rotation30°） |
3.5inch color screen（Automatic rotation30°） |
3.5inch backlit screen（Manual rotation30°） |
| Backpressure Compensation Function |
Available |
None |
||
| Viewing Window |
Available |
|||
| Other Functions |
Clock, battery level display, data storage/deletion, data output（USB）、Printing（RS232）（6715Bluetooth function available） |
|||
| Data Storage |
8000sets |
3000sets |
||
| Power |
4pcs5AA batteries（9hours），DC5VAdapter power supply |
|||
| Hood Sizes |
Standard |
610×610mm |
||
| Optional |
610×1220mm; 305 × 1220mm; 500× 500mm; 915× 915mm' 915×610mm |
|||
| Total Weight |
3.6kg |
Approximately3.4kg |
||
| Standard Accessories |
610×610mmHood, carrying case, batteries（4pcs）、Operation manual, communication cable and test software |
|||
| Optional Accessories |
1.Telescopic rod, dedicated micro printer and printing cable, lifting frame (when testing with air volume hood, overall height ≥3.4m), power adapter, instrument strap 2.Pitot tube, velocity matrix,2air tubes - length 2 meters (only6715） |
|||
