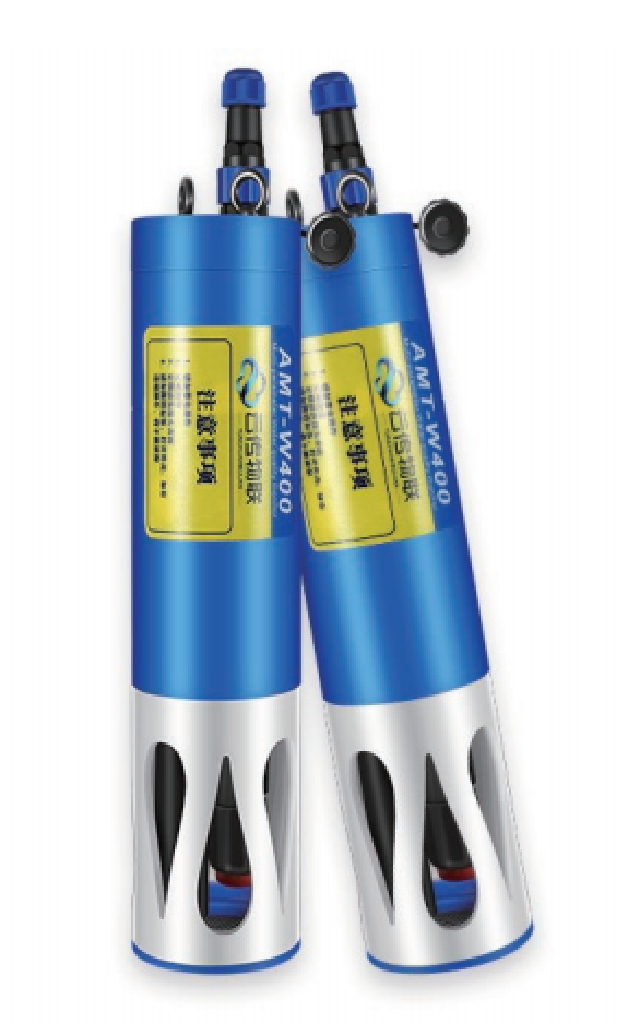

Multi-parameter water quality transmitter sensor multi-parameter water quality collector online detection - amt-w400
Intelligent multi-parameter water quality detector, integrating optical detection, electrochemical sensing, and intelligent data processing, achieving pHDissolved oxygen, conductivity, turbidity,CODAmmonia nitrogen, total phosphorus, total nitrogen, residual chlorine, temperature, reagent concentration and other indicators can be quickly measured in one stop, replacing multiple single-parameter devices, greatly improving detection efficiency and data consistency.
Product Introduction
Multi-parameter water quality transmitter sensor, multi-parameter water quality collector

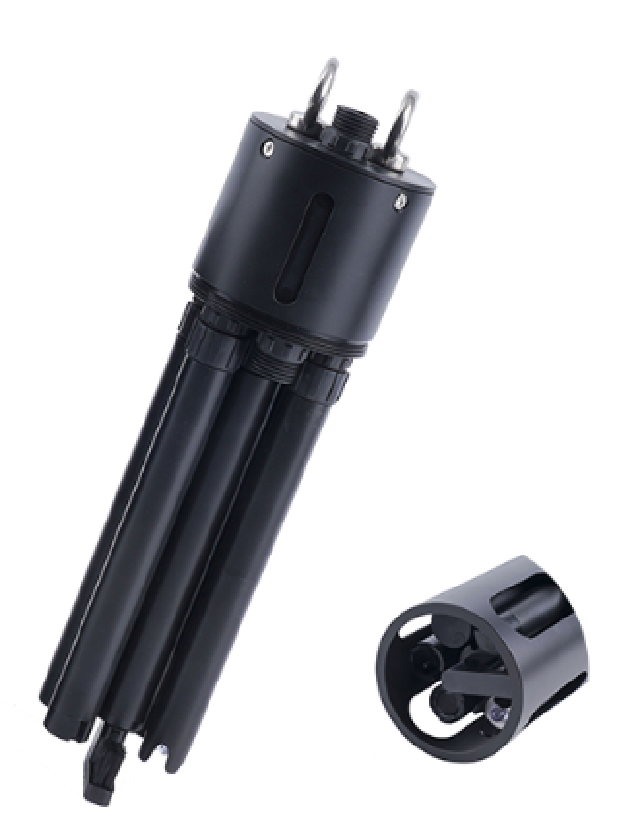

Multi-parameter water quality detector(Without cleaning brush)Adopting integrated design, the product is reliable and easy to use. It can connect up to six digital sensors at the same time. The optional detection parameters include dissolved oxygen,pH、ORPConductivity, turbidity, etc. AdoptingRS485Bus,Modbus/RTUCommunication protocol. The signals measured by the sensor can be directly transmitted to the data acquisition platform, and technical personnel can use touch screens, mobile phones, and computers for data collection, which is convenient and fast.
Multi-parameter water quality transmitter sensor, multi-parameter water quality collector
Core content of product manual
1. Product positioning
Intelligent multi-parameter water quality detector, integrating optical detection, electrochemical sensing, and intelligent data processing, achieving pHDissolved oxygen, conductivity, turbidity,CODAmmonia nitrogen, total phosphorus, total nitrogen, residual chlorine, temperature, reagent concentration and other indicators can be quickly measured in one stop, replacing multiple single-parameter devices, greatly improving detection efficiency and data consistency.
2. Core detection parameters (can be customized as needed)
Conventional physical and chemical:pH、ORPConductivity,TDSSalinity, temperature, turbidity, color, suspended solids
Pollution indicators:CODAmmonia nitrogen, total phosphorus, total nitrogen, permanganate index
Disinfection indicators: residual chlorine, total chlorine, chlorine dioxide, ozone
Heavy metals: copper, cadmium, lead, zinc, arsenic, manganese, iron, etc.
Special indicators: chlorophyll aChlorophyll, blue-green algae, oil in water, sludge concentration
3. Core advantages
① Integrated and efficient
One machine covers 20–60 + Indicators, synchronized / Sequential detection, saving compared to single-parameter devices 50%+ Time, reducing 30%–50% Procurement and operation costs.
② Accurate and reliable
Imported cold light source / High-precision sensors, dual colorimetric system, temperature / Salinity automatic compensation; complies with national standards HJ/GB Method, data authoritative and can be used for law enforcement and certification.
③ Intelligent and easy to use
HD touch screen, Chinese guided operation, pre-set curves / One-key calibration; digestion and colorimetry integrated, pre-made reagents without preparation, beginners can get started quickly.
④ Full-scenario adaptation
Portable type: field inspection, emergency monitoring, on-site rapid testing
Online type: water sources, pipe networks, sewage plants 24h Continuous monitoring
Benchtop type: laboratory batch analysis, quality control re-inspection
⑤ Data compliance
Large capacity storage (≥4000 Items), supporting USB / Bluetooth / 4G/WiFi Transmission, docking platform; on-site printing, generating standard reports, meeting environmental protection / Water affairs / Food safety reporting requirements.
4. Technical highlights
Modular design, parameters freely combined, expandable and upgradeable in the future
Wide range segmented measurement, precise adaptation for high and low concentration water samples
Strong anti-interference, stable detection in high-chlorine water samples and complex matrices
Low power consumption and long battery life, worry-free continuous outdoor work
Waterproof and dustproof body, sturdy and durable
Multi-parameter water quality transmitter sensor, multi-parameter water quality collector
5. Application scenarios
Municipal water affairs: water plants, secondary water supply, pipe network endpoints, rural drinking water safety
Environmental monitoring: surface water, groundwater, black and odorous water bodies, pollution source investigation
Wastewater treatment: influent / Effluent monitoring, process control, compliance discharge
Industrial water: circulating water, boiler water, pure water, wastewater treatment
Aquaculture: dissolved oxygen,pHReal-time control of ammonia nitrogen to improve breeding efficiency
Food and medicine: production water, process water, discharge water quality control
Emergency monitoring: rapid screening of water quality after pollution accidents and floods
6. Typical customers
Ecological environment bureaus, hydrology and water resources bureaus, water affairs groups, sewage treatment plants, water supply companies, aquaculture bases, food and beverage factories, chemical enterprises, third-party testing institutions, universities and research institutes
Main Application Areas
- Environmental Monitoring — Used for real-time monitoring of surface water, groundwater, and wastewater to ensure compliance with environmental standards.
- Aquaculture — Monitors water quality parameters in fish farms and hatcheries to maintain optimal conditions for aquatic life.
- Industrial Process Water — Ensures the quality of process water in manufacturing, power plants, and other industries to prevent corrosion and scaling.
- Drinking Water Treatment — Monitors key parameters in water treatment plants to ensure safe and clean drinking water supply.
