Multi-tank Ultrasonic Level Sensor - Model UC-4000

1. Multi-tank Ultrasonic Level Sensor Model UC-4000 Product Description:

Intelligent enough to monitor up to 9 liquid tanks of any size without calibration

· Automatically scans all liquid tanks

· Sequentially displays the level, volume, or optional weight of each tank

· No calibration or programming required

· Non-contact monitoring

· Easy installation – only one box. All sensor cables can be placed in a single conduit

· Maintenance-free

· Suitable for any liquid, slurry, or appropriate solid

· Made in the USA

2. Multi-tank Ultrasonic Level Sensor Model UC-4000 Product Specifications:

Accuracy: +/- 0.25% of range

Repeatability: +/- 0.1%

Power: 115 VAC +/- 15%, 50/60 Hz, 10 to 20VA, standard

Optional: 220 VAC +/-15%, 50/60 Hz, 5 to 15VA, 24 VDC, 12 VDC.

Enclosure: NEMA 4X fiberglass, IP65, typical 36 x 30 x 450px, operating temperature -6.7°C to +60°C optional.

Sensor: PVC, CPVC, Teflon, 316 stainless steel, explosion-proof Kynar enclosure. 3-A sanitary sensor.
Sensor cable: RG62/U coaxial, 9 meters standard length

3. Multi-tank Ultrasonic Level Sensor Model UC-4000 Applications:

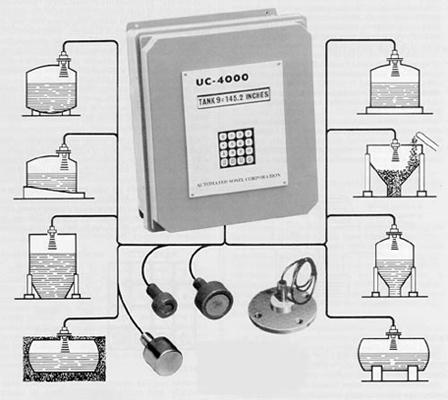

· Automatically scans up to 9 liquid tanks of any size. Monitoring is non-contact, with sensors installed above the maximum liquid level in the tank.

· Sequentially displays the level and volume in each tank.

· Provides outputs for each tank, with up to 3 set points and 4-20mA current

· Can send the level and volume of each tank via RS232C computer connection output.
