Product Introduction

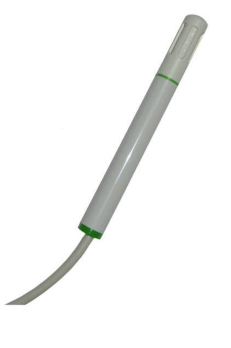

I. Italy NesaIndoor Humidity Sensor URI Description:
Plastic material sensor used to measure indoor humidity. Its small size allows for use in hidden conditions.
The sensor is made of a film that changes its capacitance with air humidity in a linear manner and can be connected to wireless transmission modules using the ZigBee protocol, making it possible to create a network of several sensors, directly recognized by a series of data loggers TMF100 or TMF500 from Nesa using appropriate gateways.
Available with voltage (0-1Vdc) or current 4-20mA electrical signal output.
II. Italy Nesa Indoor Humidity Sensor URIFeatures:
Accurate and reliable air humidity sensor
Very limited size and weight
According to CE regulations
Ideal for wireless networks using ZigBee modules
III. Italy Nesa Indoor Humidity Sensor URIParameters:
| Parameter |
Technical Specification |
| Humidity Range |
0 ~ 100%Rh |
| Resolution |
0.1% |
| Accuracy |
± 2% f.s. |
| Humidity Response Time |
< 90sec (10 ~ 80%RH) |
| Typical Sensor |
Capacitance |
| Signal |
0 - 1 Vdc, 4 - 20mA |
| Operating Conditions |
-40 ~ +60째C |
| Power Consumption |
10 ~ 30Vdc |
| Current Consumption |
< 0.1W |
| Weight |
<80g |
