Product Introduction

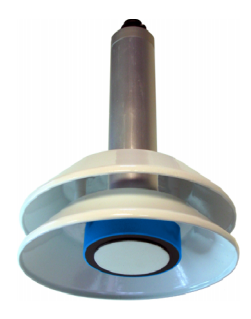

1. Italian Nesa Ultrasonic Level Sensor LU06 Description:
This is a sensor made with a piezoelectric transducer IP67, designed to protect the sensor from direct solar radiation and wind ducts. In addition to the sensor, it provides extremely precise measurement methods with excellent repeatability, low hysteresis, and temperature stability, allowing the sensor to be used as a water meter and a snow meter. It has different outputs: analog (voltage or current) and digital mode/RS485.
Ultrasonic level sensorLU06, suitable for outdoor use, such as sewers, silos, etc., suitable for outdoor use. Aluminum structure with anti-corrosion, automatic temperature compensation, complies with WMO environmental monitoring. The sensor is equipped with electrical protection and various signal outputs are available.
2. Italian Nesa Ultrasonic Level Sensor LU06 Features:
High precision hydrometer / Snow-meter
Automatic temperature compensation
Piezoelectric measuring device IP67
Waterproof IP66 body for outdoor applications
Accuracy less than 0.1% of full scale value @20°C
Factory adjustable sensitivity.
Various signal outputs available
3. Italian Nesa Ultrasonic Level Sensor LU06 Parameters:
| Parameter |
Technical Specification |
| Typical Range |
0 ~ 6000mm (0 ~ 10000mm on request) |
| Sensitivity |
1 mm |
| Accuracy |
0.1% f.s. @20°C (error < 2%) |
| Response Time |
< 1s |
| Nature |
Piezoelectric |
| Operating Frequency |
65 kHz |
| Standard Signal |
4 ~ 20mA or 0 ~ 10Vdc |
| Power Consumption |
10.8 ~ 30 Vdc |
| Current Consumption |
Less than 2 W (during measurement) |
| Operating Conditions |
-25°C to +70°C |
| Enclosure |
Aluminum IP66 |
| Weight |
680g |
