Product Introduction

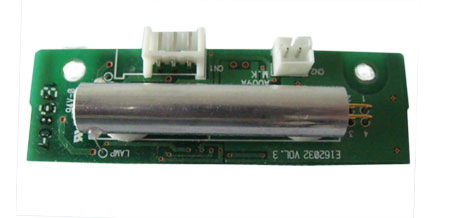

Japan Nicera CO2 Carbon Dioxide Sensor ModuleCO2-4K-3M Description:
Monitoring parameter carbon dioxide (CO2) indoor CO2 concentration, the CO2 sensor module CO2-4K-3M is currently the main parameter used internationally and domestically to measure indoor air ventilation status and air quality. It uses advanced infrared self-diffusion NDIR method to measure CO2, with fast response, high stability and consistency.
Japan Nicera CO2 Carbon Dioxide Sensor ModuleCO2-4K-3M Parameters:
| Carbon dioxide sensor unit |
( CO2-4K-3M-P) |
| Output |
PWM open collector max 5mA to GND |
| Operating Temperature |
5~30℃ |
| Storage Temperature |
-20~50℃ |
| Operating Humidity |
20-95% non-condensing |
| Supply Voltage |
+/-0.5 VDC |
| Current Consumption |
80mA (average) <150mA (peak) |
| Connection Pins |
(3-pin) Pin_1 – V+ Pin_2 – V- Pin_3 – PWM Output |
| Connector Type |
JST S3B-EH-A(LF) |
| Non-linearity less than |
1%FS |
| Response Time |
Less than 150 seconds for 90% change |
| Warm-up Time |
Less than 5 minutes (operation) |
| Reverse Polarity Protection |
None |
| Measurement Method |
Infrared self-diffusion NDIR |
| Measurement Range |
400 – 4,000ppm |
| Accuracy |
+/-5% FS (+/-200ppm) at 25℃ |
| Pressure Dependence |
0.13% of reading per mmHg |
| Response Time |
Less than 3 minutes for a 90% change |
| Warm-up Time |
Less than 30 seconds operational, <15 minutes full accuracy |
| Cycle |
1004 MS + / – 5% |
| Cycle starts high level |
2MS（nominal） |
| Cycle ends low level |
2MS（nominal） |
