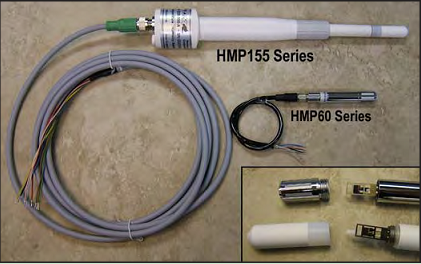

US NovaLynx Relative Humidity and Temperature Sensor - 225-HMP60A
Humidity measurement range: 10 ~ 90% (specified accuracy)
Humidity accuracy: better than ±3% @ +20°C
Humidity operating range: 0-100% RH
Stability: ±2% RH over two years
Temperature measurement range: -40° to +60°C
Temperature accuracy: ±0.6° @ +20°C
Input power: 7-28 Vdc
Current consumption: 2 mA typical
Output signal: 0 ~ 1 Vdc standard; 0 ~ 5 Vdc on special order
Housing material: chrome-plated aluminum (IP 65)
Dimensions: Dia (12 mm) x L (80 mm), thread M12 x 1
Cable length: 313 mm with molded connector
Cable connector: Screw-on 4-pin M8 molded L (37 mm)
Product Introduction
Relative Humidity and Temperature Sensor225-HMP60ADescription:
The relative humidity and temperature sensor 225-HMP60A uses a laser-trimmed capacitive INTERCAP for accurate relative humidity measurement. The chip is user-replaceable and requires no calibration. The membrane filter protects against dust and dirt. The 225-HMP60A also measures temperature. If the sensor is placed outdoors, a solar radiation shield is required.
Specifications of Relative Humidity and Temperature Sensor 225-HMP60A:
Humidity measurement range: 10 ~ 90% (specified accuracy)
Humidity accuracy: better than ±3% @ +20°C
Humidity operating range: 0-100% RH
Stability: ±2% RH over two years
Temperature measurement range: -40° to +60°C
Temperature accuracy: ±0.6° @ +20°C
Input power: 7-28 Vdc
Current consumption: 2 mA typical
Output signal: 0 ~ 1 Vdc standard; 0 ~ 5 Vdc on special order
Housing material: chrome-plated aluminum (IP 65)
Dimensions: Dia (12 mm) x L (80 mm), thread M12 x 1
Cable length: 313 mm with molded connector
Cable connector: Screw-on 4-pin M8 molded L (37 mm)
