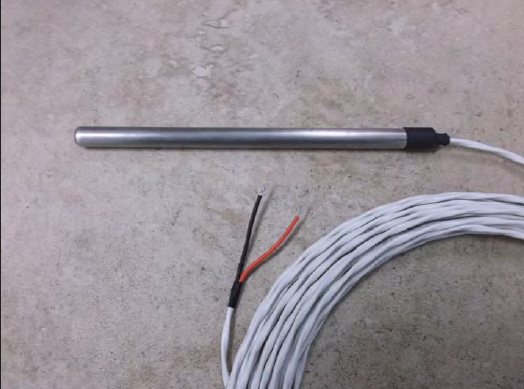

US NovaLynx Water Temperature Sensor - 210-101W
Output: 4-20 mA (loop powered)
Range: -50°C ~ +50°C (-58°F ~ 122°F) 4 mA = -50°, 20 mA = +50°C
Accuracy: ± 0.2°C ~ ± 0.4°F, factory calibrated 0.01% linear output
Sensing Element: 1000 ohm platinum RTD
Probe Housing: 3/8" 304/316 stainless steel, sealed tube
Signal Conditioner: Built-in RTD transmitter
Operating Voltage: 12 ~ 40 Vdc
Current Consumption: Same as sensor output. Warm-up time: 2 seconds
Operating Temperature: -50 ~ 50°C (-58 ~ 122°F)
Product Introduction
1. Description of 210-101W Water Temperature Sensor
The 210-101W water temperature sensor is a rugged, reliable device for high-precision submersible water temperature or soil temperature measurement. It produces a 4-20 mA output signal, which is the industry standard for process control monitoring. Most PLCs (Programmable Logic Controllers), SCADA equipment, and data acquisition systems directly accept this signal.
2. Technical Specifications of 210-101W Water Temperature Sensor:
Output: 4-20 mA (loop powered)
Range: -50°C ~ +50°C (-58°F ~ 122°F) 4 mA = -50°, 20 mA = +50°C
Accuracy: ± 0.2°C ~ ± 0.4°F, factory calibrated 0.01% linear output
Sensing Element: 1000 ohm platinum RTD
Probe Housing: 3/8" 304/316 stainless steel, sealed tube
Signal Conditioner: Built-in RTD transmitter
Operating Voltage: 12 ~ 40 Vdc
Current Consumption: Same as sensor output. Warm-up time: 2 seconds
Operating Temperature: -50 ~ 50°C (-58 ~ 122°F)
Probe Assembly Dimensions: 3/8" diameter x 6" long, 12 oz
Cable: 25', 2-wire, FEP
Warm-up Time: 2 seconds
Operating Temperature: -50 ~ 50°C (-58 ~ 122°F)
Probe Assembly Dimensions: 3/8" diameter x 6" long, 12 oz
Cable: 25', 2-wire, FEP
