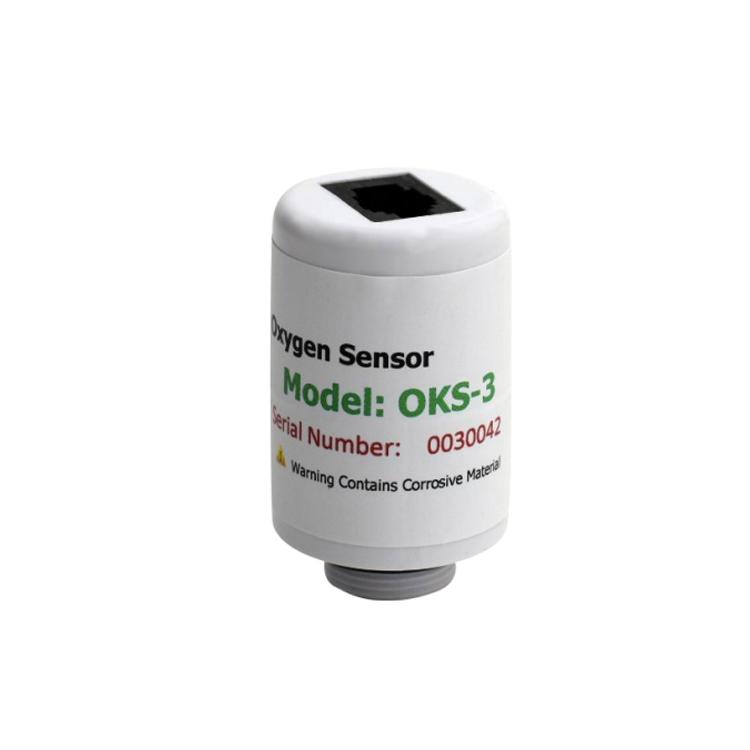

US Oksidyne Electrochemical Oxygen Sensor - OKS-3
Measures oxygen in 0-100% range
Electrochemical fuel cell sensor technology
Self-contained, no electrolyte addition required
Excellent stability, performance & linearity
Competitive replacement
Replaces City Tech MOX-3, AII PSR-11-61-03, Maxtec MAX-3, Viamed R-48V
Product Introduction
US Oksidyne Electrochemical Oxygen SensorOKS-3 Description:
Oksidyne offers a wide range of high-quality production lines, manufacturing precision electrochemical micro-fuel cell oxygen sensors. These sensors provide a wide range of configurations, analyzing oxygen from 0-100.0%.
US Oksidyne Electrochemical Oxygen SensorOKS-3 Features:
Measures oxygen in 0-100% range
Electrochemical fuel cell sensor technology
Self-contained, no electrolyte addition required
Excellent stability, performance & linearity
Competitive replacement
US Oksidyne Electrochemical Oxygen SensorOKS-3 Applications:
Anesthesia monitoring
Intensive care
Incubators
Oxygen partial pressure in general oxygen monitors
US Oksidyne Electrochemical Oxygen SensorOKS-3 Parameters:
| Sensing Technology |
Electrochemical |
| Signal Output |
9 - 13 mV |
| Range |
0 - 100% |
| Response Time T90 |
13 seconds |
| Full Scale Accuracy |
± 1% signal |
| Repeatability F.S |
± 0.5% |
| Operating Temperature |
0~45º C |
| Storage Temperature |
0~45º C |
| Cross Sensitivity |
Meets EN12598 |
| Recommended Flow Rate |
0.4 - 20 SCFH |
| Housing Material |
White ABS |
| Humidity |
0 - 100% RH (non-condensing) |
| Expected Life |
< 60 months |
| Storage |
12 months |
| Warranty |
12 months |
