Product Introduction

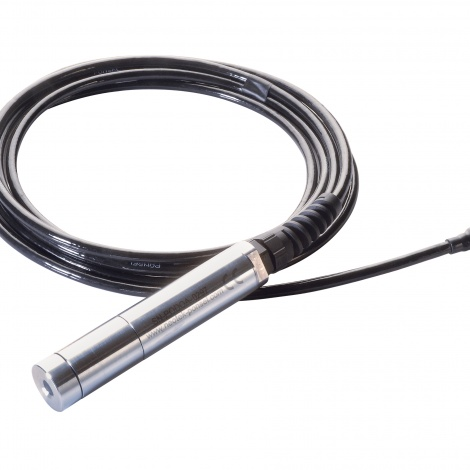

French PONSEL PTOD Fluorescence Sensor PF-CAP-C-00140 Description:
Optical Technology:
OPT0D (optical dissolved oxygen measurement technology) is a design based on fluorescence optical technology. The OPTOD sensor has been certified by ASTM International Test Method D888-05.
This device requires no calibration. Due to the ultra-low energy consumption technology applied in the design, the OPTOD sensor meets all needs for field operations and long-term or short-term testing.
Without consuming oxygen, this technology provides accurate measurement data for all measurement environments, especially those with low oxygen concentrations.
Digital Technology:
The smart OPTOD sensor can store calibration and historical data internally. Therefore, this device does not require repeated calibration and is 'plug-and-play'.
Using the universal Modbus RS485 protocol, the PONSEL OPTOD can be connected to all common devices (data loggers, controllers, automation systems, remote systems, etc.).
Features:
Compact, robust, and lightweight, suitable for portable and online use.
Made of 316L stainless steel (passivated) or titanium alloy, suitable for corrosive environments.
French PONSEL PTOD Fluorescence Sensor PF-CAP-C-00140 Features:
Optical technology, no calibration required
Digital technology (Modbus RS-485)
No drift, reduced maintenance
316L stainless steel or titanium alloy construction
French PONSEL PTOD Fluorescence Sensor PF-CAP-C-00140 Specifications:
| Measurement Parameters |
|
| Measurement Principle |
Fluorescence optical measurement technology |
| Range |
0.00-20. 00mg/L 0.00-20.00ppm 0-200% |
| Resolution |
0.01 |
| Accuracy |
+/- 0.1 mg/L +/- 0.1 ppm +/-1 % |
| Response Time |
90% of response time is less than 60 seconds |
| Flow Requirement |
None |
| Temperature Compensation |
Via NTC |
| Storage Temperature |
-10°C to +60°C |
| Signal Interface |
Modbus RS-485 (standard) and SDI-12 (optional) |
| Sensor Power Supply |
5 to 12 volts |
