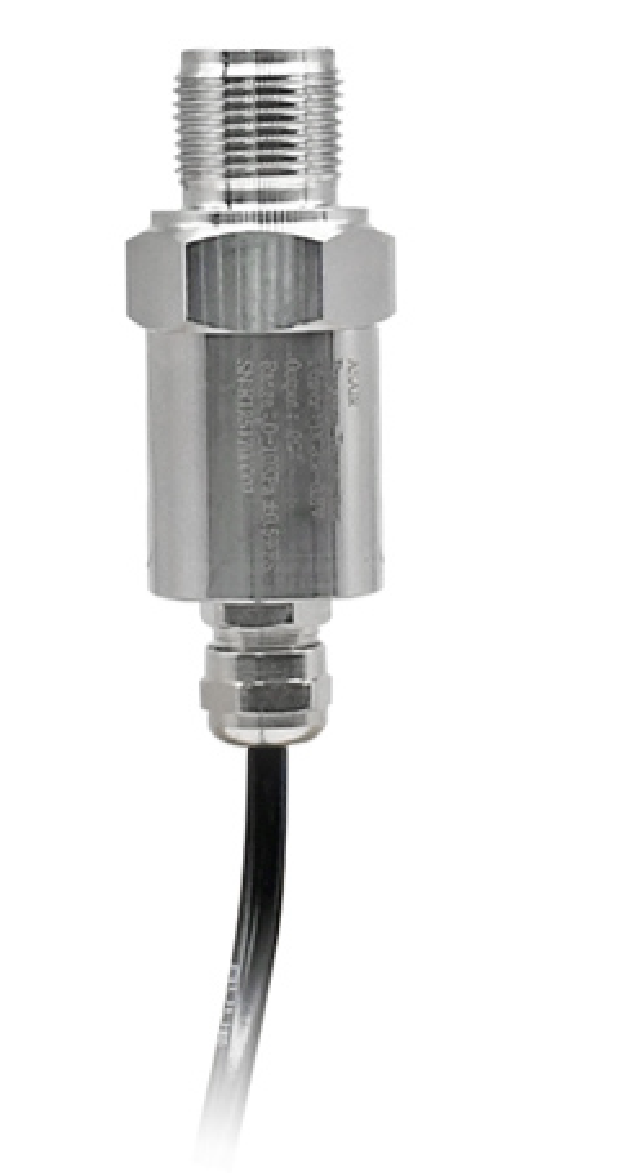

AMTAPD Series Pressure Transmitter - AMTAPD
Model AMTAPD Series Parameters Values Linearity ±0.25%FS Non-linearity ±0.25%FS Repeatability ±0.2%FS Long-term Stability ±0.2%FS/year Zero Temperature Drift ±0.3%FS/℃ Sensitivity Temperature Drift ±0.3%FS/℃ Response Time ≤50ms Resolution ≤14 bits Medium Temperature -40~85℃ Operating Temperature -40~85℃ Housing Protection IP67 Overload Capacity 150%FS Housing Material SUS304 Metal Parts in Contact with Gas Material SUS304 Product Weight Approx. 185g Pressure Type Gauge Pressure Temperature-Pressure Integrated Model Temperature Range -20~80℃ Temperature Accuracy ±2.5%FS
Product Introduction
The AMTAPD series is a low-power, low-voltage powered, high-stability pressure transmitter. With an integrated high-performance pressure sensor core, combined with stable and reliable signal processing circuits and temperature compensation technology, it achieves the conversion of pressure parameters into linear electrical signals. This design not only ensures the accuracy of measurement results but also greatly enhances the reliability and stability of the transmitter under complex environmental conditions.
The AMTAPD series pressure transmitter is widely used in petrochemical, smart buildings and IoT, automotive and transportation, power and energy, industrial automation and process control, environmental protection, and many other fields. It precisely achieves the measurement and control of gauge pressure, negative pressure, or absolute pressure in various fluid and gas media, demonstrating strong adaptability and broad industry application value.
Main Application Areas
- Industrial Process Control — Precise pressure monitoring in chemical, petrochemical, and manufacturing processes for optimal control and safety.
- HVAC Systems — Reliable pressure measurement in heating, ventilation, and air conditioning systems for efficient operation.
- Water Treatment — Monitoring pressure in water supply and wastewater treatment plants to ensure system integrity.
- Oil and Gas — Pressure measurement in upstream, midstream, and downstream operations for safe and efficient production.
- Automotive Testing — Pressure sensing in engine and transmission testing for performance and durability evaluation.
