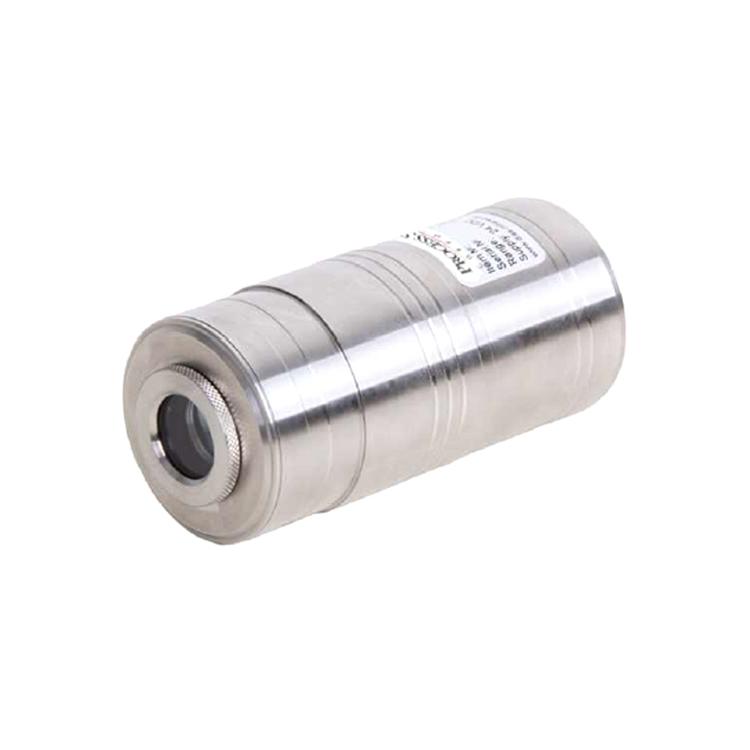

US Process Sensors Corp Non-Contact Infrared Pyrometer - PSC-T54U
Temperature Range: 350° to 1200°C (662° to 2192°F)
Sub Temperature Range: Adjustable via RS-485 interface within full temperature range, Min span 50°C
Spectral Range: 7.8µm
Accuracy: 0.6% of reading in °C or 1K
Emissivity: 0.200 to 1.000, adjustable via RS-485
Output: 0/4 to 20 mA, linear with temperature, Max load 700 Ω
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Product Description
PSC-T54U Non-Contact Infrared Pyrometer Description:
With a wide range of 350° to 1200°C, it is essential for temperature measurement of ultra-thin glass surfaces.
The rugged and compact stainless steel housing ensures the device can operate under harsh environmental conditions.
The PSC-T54U responds quickly, with only 60 ms response time, suitable for fast metering tasks and spot sizes above 5 mm.
The standard 0/4 to 20 mA linear output signal allows seamless integration into existing measurement and control systems. The PSC-T54U has a galvanically isolated RS-485 interface, making it bus-compatible using Modbus RTU protocol.
PSC-Spot software connects to a PC via RS-485 to USB, allowing easy adjustment of emissivity, sub temperature range, response time, and data storage.
PSC-T54U Non-Contact Infrared PyrometerParameters:
| Temperature Range |
350° ~ 1200°C (662° ~ 2192°F) |
| Sub Temperature Range |
Adjustable via RS-485 interface within full temperature range, Min span 50°C |
| Spectral Range |
7.8µm |
| Distance Ratio |
Approx. 70:1 at 370mm for 5.3mm spot |
| Accuracy |
0.6% of reading in °C or 1K |
| Repeatability |
0.3% of reading in °C or 0.5K |
| Response Time (t90) |
60 ms (min.), adjustable via RS-485 with PSC Spot software |
| Emissivity |
0.200 to 1.000, adjustable via RS-485 |
| Output |
0/4 to 20 mA, linear with temperature, Max load 700 Ω |
| Interface |
RS-485 (galvanically isolated), half-duplex,MaxBaud rate 115 kBd, Data protocol Modbus RTU |
| Alarm Delay |
Photoelectric delay, RLoad MinValue 48 Ω (galvanically isolated) adjustable within temperature range |
| Software |
PSC Spot for Windows® |
| Parameters |
Emissivity, response time, data storage, sub temperature range, transmissivity, ambient radiation Adjustable via RS-485 |
| Power Supply |
24 V DC ±25%, residual ripple 500 mV |
| Power Consumption |
Max. 1.5W |
| Operating Temperature |
0°C ~ 70°C (32°F ~ 158°F) |
| Storage Temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
| Weight |
Approx. 600g (1.32 lb.) |
| Housing |
Stainless steel round housing with connector head |
| Dimensions |
Length: approx. 105mm, Diameter: approx. 50mm |
| Protection Class |
IP 65 (according to DIN EN 60529 and DIN 40050) |
| CE Mark |
According to EU regulations (EN 50 011) |
| Standard Delivery |
PSC-T54U, manual, inspection certificate, PSC Spot for Windows® software (no cable – must be ordered separately) |
