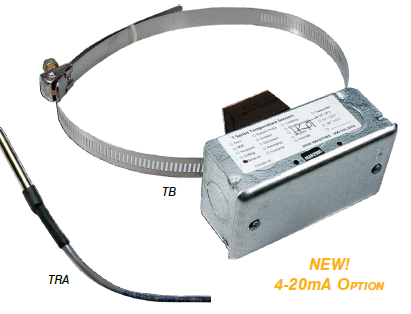

Professional Temperature Sensor – Remote Probe - TRAB0
Specifications:
Wiring: 22AWG; 2-wire: RTD thermistor
Input: 4-20mA mode: loop powered, 12-30VDC only, max 30mA;
0-5/0-10V mode: Class 2, 12-30VDC/24VAC, 50/60Hz, 15mA max
Temperature output: 2-wire, 4-20mA loop powered
Sensor type: Thermistor/RTD
Accuracy: ±.1°C
Range: -25° to 105°C (usable range; model specifies specific range)
Product Introduction
Professional Temperature Sensor – Remote Probe - TRAB0 Features:
TRA probe sensor
Durable stainless steel sensing probe extends sensor life
Multiple cable lengths for application flexibility
Professional Temperature Sensor – Remote Probe - TRAB0 Specifications:
Wiring: 22AWG; 2-wire: RTD thermistor
Input: 4-20mA mode: loop powered, 12-30VDC only, max 30mA;
0-5/0-10V mode: Class 2, 12-30VDC/24VAC, 50/60Hz, 15mA max
Temperature output: 2-wire, 4-20mA loop powered
Sensor type: Thermistor/RTD
Accuracy: ±.1°C
Range: -25° to 105°C (usable range; model specifies specific range)
