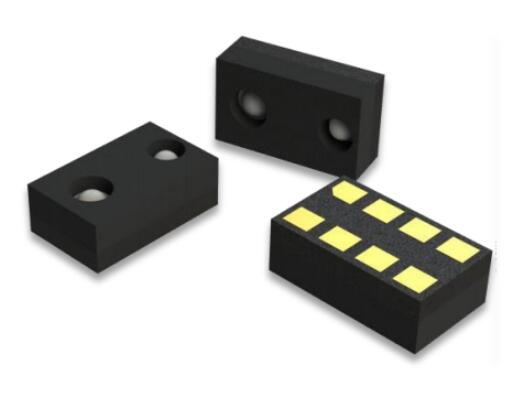

Light Distance Sensor Proximity Sensing Chip - WH4530A

The WH4530A is a light-to-digital converter that combines an ambient light sensor, proximity sensor, and high-efficiency infrared LED.

The Ambient Light Sensor (ALS) has a built-in filter to suppress infrared and provides a spectral response close to the human eye. The ALS can operate from darkness to direct sunlight with a selectable detection range of approximately 40dB. Dual-channel output (human eye and clear) enables good light ratio under different lighting conditions.

The Proximity Sensor (PS) has a built-in 940nm filter for ambient light immunity, so the PS can detect reflected infrared light with high accuracy and excellent immunity.

WH4530AFeatures programmable interrupt with threshold-based hysteresis for ALS and PS.

I. Features of Distance Sensor Chip - WH APS 4530A:

I2C interface (400kHz/s fast mode)

Supply voltage range 2.4V ~ 3.6V

Operating temperature from -40°C to +85°C

Ambient Light Sensor:

Spectral response close to human eye

Anti-flicker under fluorescent lighting

Selectable gain and resolution (up to 16-bit)

High sensitivity, wide detection range

High accuracy of light ratio

Proximity Sensor:

Recommended operating distance <100cm

Selectable gain and resolution (up to 12-bit)

Programmable PWM and LED current

Smart crosstalk calibration

Speed mode for improved response time

II. Applications of Distance Sensor Chip - WH APS 4530A：

Mobile devices: smartphones, tablets, PDAs, mobile POS terminals

Consumer devices: LCD TVs, digital cameras, toys

Computing devices: laptops, LCD monitors

Smart home: smart lighting, smart curtains, night lights

Outdoor: surveillance systems, street lights

Industrial applications
