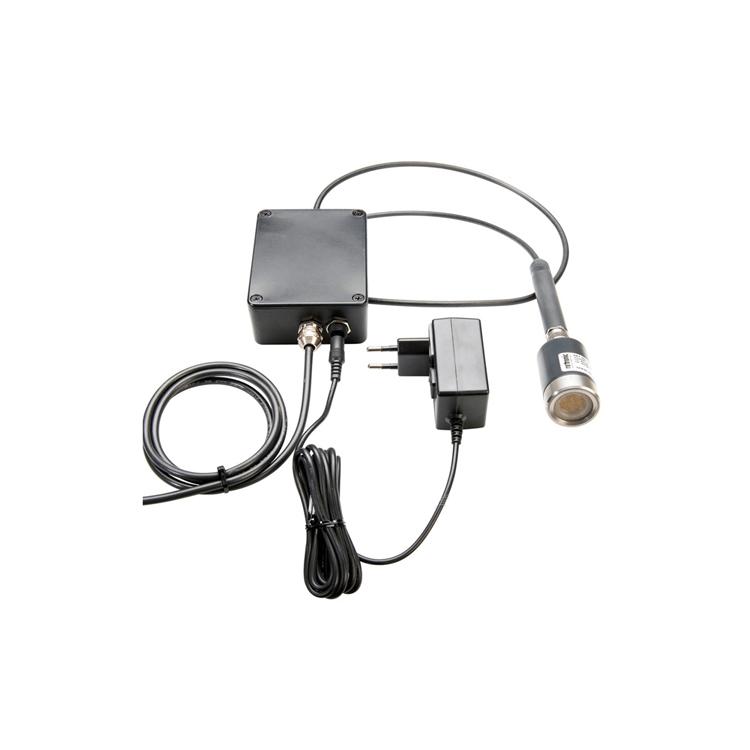

Swiss Rotronic CO2 Probe for IncubatorCCA-S-20X Description:
CCA-S-20X is an analog probe using NDIR technology for measuring CO2 in incubators. It features a dual temperature-compensated thermopile infrared detector and an integrated semiconductor temperature sensor to maximize accuracy and minimize drift. The signal can be converted to 4-20 mA via a converter with power supply (CCA-S-20X-SET).
Swiss Rotronic CO2 Probe for IncubatorCCA-S-20XFeatures:
Measurement range 0 to 20 %CO2
Suitable for incubators: 37 °C, 95-98 %RH and 5 %CO2
Interchangeable probe
Accuracy within measurement range ±0.1 °C
Swiss Rotronic CO2 Probe for IncubatorCCA-S-20X Applications:
Incubators
Swiss Rotronic CO2 Probe for IncubatorCCA-S-20X Parameters:
| Measurement principle |
Infrared (NDIR) |
| Measured parameter |
CO2 concentration (%) |
| Accuracy |
5 % vol. CO2 ±0.15 % CO2 0 -8 % vol. CO2 ±0.15 % CO2 0 -20 % vol. CO2 ±0.2 % CO2 |
| Medium |
Air & Non-corrosive gases |
| Long-term stability |
±0.24 % CO2/Year |
| Temperature dependence |
of measured value ±10 % |
| Pressure dependence |
of measured value ±0.15 % /hPa |
| Measurement range |
0-20 %CO2 |
| Application range |
-20-50 °C / 0-100 %RH, 700-1200 hPa |
| Storage conditions |
-20-30 °C / 0-95 %RH |
| Start-up time |
60 s |
| Power Supplies |
CCA-S-20X: 3-5 VDC / 80 mA CCA-S-20X-Set: 24 VDC / 150 mA |
| AC Adapter requirements |
100-240 VAC / 50-60 Hz / 0.3 A |
| Output signal |
4-20 mA (CCA-S-20X-SET) 0.4-2.0 V (CCA-S-20X Sensor only) |
| FDA / GAMP Directives |
FDA CFR21 Part 11 / GAMP 5 |
| Fire rating |
Complies with UL94-HB |
| Housing material |
Polycarbonate (Housing) Stainless steel DIN 1.4305 ( Nut ) |
| Dimensions |
Sensors: 32 mm x 87 mm Conversion box: 100 mm x 77 mm x 40 mm (LxWxH) |
| Weight |
55 g Sensors 200 g Conversion box |
| IP Protection class |
IP40 |
