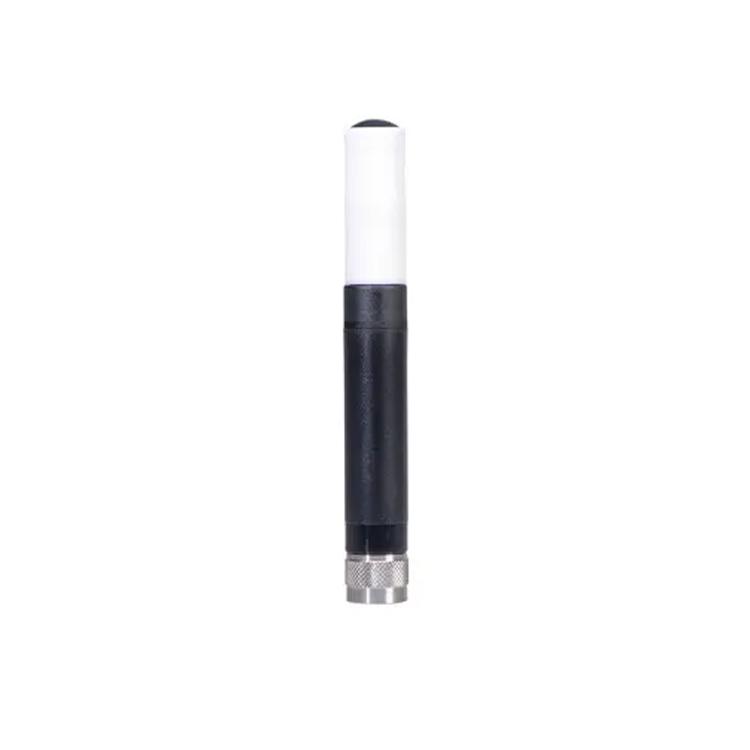

ROTRONIC Temperature and Humidity Probe - HC2A-S

ROTRONIC Temperature and Humidity ProbeHC2A-S Description:
The HC2A-S is a fully featured high-precision temperature and humidity sensor probe produced by ROTRONIC AG, Switzerland, and serves as the foundation of the product line. It measures humidity, temperature, and calculates dew point and frost point.
The HC2A-S high-precision temperature and humidity sensor probe is widely used in HVAC, food, building equipment, papermaking, textile, pharmaceutical, and other industries.
The HC2A-S high-precision digital probe stores calibration data in the probe's internal memory. Measurement accuracy depends only on the probe. Compatible devices such as the HP32 portable hygrometer, HF5 or HF8 transmitters, and HL-NT3-D temperature and humidity data loggers read the probe's digital signal for monitoring, display, or transmitter output. Therefore, the digital probe features 100% field interchangeability, facilitating on-site probe replacement and maintenance.

ROTRONIC Temperature and Humidity ProbeHC2A-S Features:
Measures relative humidity and temperature, calculates dew point and frost point
High measurement accuracy and long-term stability
Measurement accuracy (@20+10°C): ±0.8%RH, ±0.1°C
Long-term stability <1%RH/year
Integrated data acquisition and calibration recording functions
Automatic diagnostics and temperature compensation
Programmable alarm function
Easy-to-use calibration function
New generation digital technology, 100% field interchangeable, no calibration required
Power supply: 3...5V DC
UART digital communication interface
Two linear 0-1V analog outputs
Factory calibration (@23°C): 10%RH, 35%RH, 80%RH

ROTRONIC Temperature and Humidity ProbeHC2A-S Applications:
HVAC
Food industry
Building automation
Cleanrooms and clean production workshops
Fresh air systems
Papermaking
Textile

Microelectronics and pharmaceutical factories, etc.

ROTRONIC Temperature and Humidity ProbeHC2A-S Parameters:

Measurement Parameters	Relative Humidity (RH), Temperature (T), Dew Point (DP) / Frost Point (FP)
Humidity Sensor	ROTRONIC HYGROMER® HT-1 humidity-sensitive capacitor
Temperature Sensor	Pt100 1/3 Class A
Measurement Range	-50~+ 100°C , 0-100 %RH
Measurement Accuracy	Standard accuracy ±0.8%RH, ±0.1°C (at 23°C) Order code HC2A-S Enhanced accuracy ±0.5%RH, ±0.1°C Order code HC2A-S-SIMT Calibrated at 10%RH, 30%RH, 50%RH, 70%RH, 90%RH with calibration certificate from National East China Metrology and Testing Center
Long-term Stability	Humidity sensor <1%RH/year
Response Time	<15S(t63)
Allowable Airflow	20 m/s (with filter)
Filter	Polyethylene, pore size 40 μm
Analog Output Signal	0-1V =0-100 %RH 0-1V = -40-60°C factory default, other ranges must be specified when ordering
Analog Output Accuracy	+1mV
Digital Output Signal	UART (standard), open protocol
Service Interface and Calibration	UART, requires separately purchased dedicated communication cable CN3001-RMC and software HW4
Software Support	HW4, purchased separately, supports single-point and multi-point calibration, firmware upgrade, user information, analog output range settings
Alarm Function	Yes, programmable
Audit Trail / Electronic Records	Complies with FDA CFR21 Part 11/GAMP
Power Supply	3-5 VDC
Power Consumption	4.5mA (at 3.3VDC supply)
Housing Material	Polycarbonate, black
Dimensions	015x108mm
Weight	10g
