Product Introduction

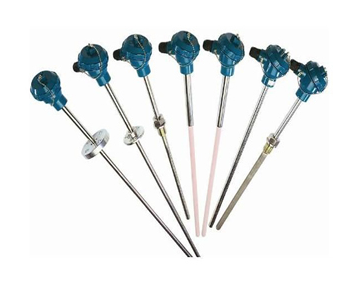

I.RTD Series Temperature SensorsProduct Features:
Fast thermal response time, reducing dynamic errors;
Small diameter, unlimited length;
High measurement accuracy;
Imported thin-film resistor elements, reliable and stable performance;
II. Main Technical Parameters of RTD Series Temperature Sensors:
Product Execution Standard
IEC751
IEC1515
JB/T8623-1997
JB/T8622-1997
Sheath Diameter:
Dual-element type: 3-8MM
Customizable per customer requirements
Calibration: Pt10, Pt100, Pt500, Pt1000
III. Selection Guide for RTD Series Temperature Sensors:
1. Model
2. RTD calibration: Pt10, Pt100, Pt500, Pt1000
3. RTD protection tube diameter: 3-8mm, 8-16mm, or per customer requirements
4. Accuracy class: Class A, Class B
5. Operating temperature: -200℃ to +850℃
6. Mounting and fixing type: Ferrule thread type, Ferrule flange type
7. Mounting thread: M12x1, M16x1, M22x1, M27x1, M33x1, or others
8. Length or insertion depth
