Product introduction

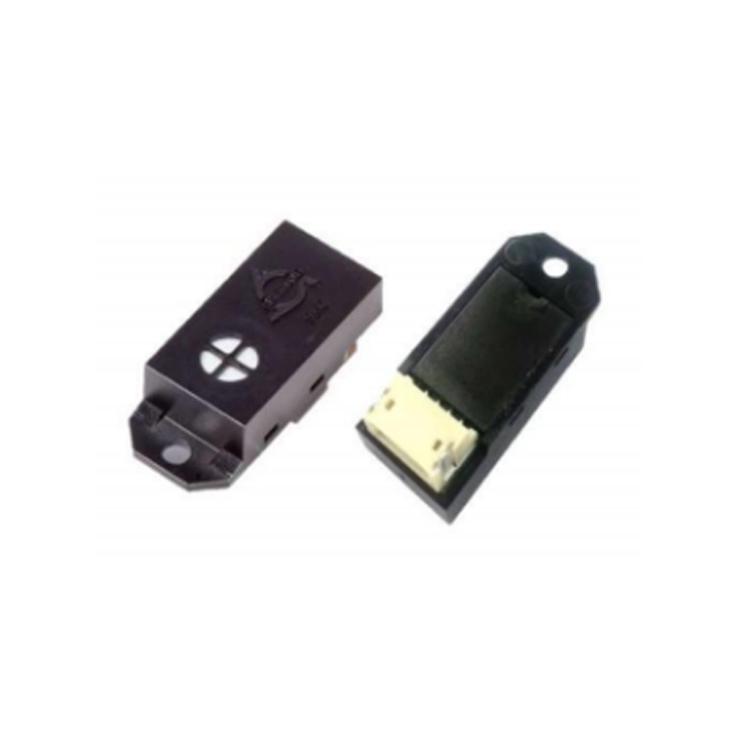

Korea Samyoung voltage output temperature and humidity sensor module HCPV-201W-01, replacement for HTG3535CH, product overview
HCPV-201W-01 is designed based on HumiChip® chip, and is a precise and reliable humidity measurement sensor module (HCPV-201 can also measure temperature).
The sensor outputs a temperature-compensated humidity value through a linear voltage, which can be directly connected to a microcontroller with ADC input.
The temperature output (only for HCPV-201) is directly output as a resistance value by an NTC thermistor, which can be directly connected to a microcontroller via ADC input.
Korea Samyoung voltage output temperature and humidity sensor module HCPV-201W-01, replacement for HTG3535CH, features:
Voltage output relative humidity (HCPV-201 also outputs temperature)
Humidity calibrated within ±3% RH
Linearity within ±3% RH
Good reliability
Meets automotive application requirements
3 types of connectors
Protective coating
Korea Samyoung voltage output temperature and humidity sensor module HCPV-201W-01, replacement for HTG3535CHApplications:
Smart home
HCPV control
Industrial process control
Medical
Automotive
Environmental monitoring
Korea Samyoung voltage output temperature and humidity sensor module HCPV-201W-01, replacement for HTG3535CHParameters:
| ParameterParameter |
Symbol |
Value |
Unit |
| Supply voltage |
Vcc |
5.0 |
v |
| Current consumption |
Icc |
1.5 |
mA |
| Environment |
|
|
|
| Storage temperature range |
Tstg |
-55~125 |
℃ |
| Operating temperature range |
Ts |
-40~85 |
℃ |
| Operating humidity range |
RH |
0-100 |
%RH |

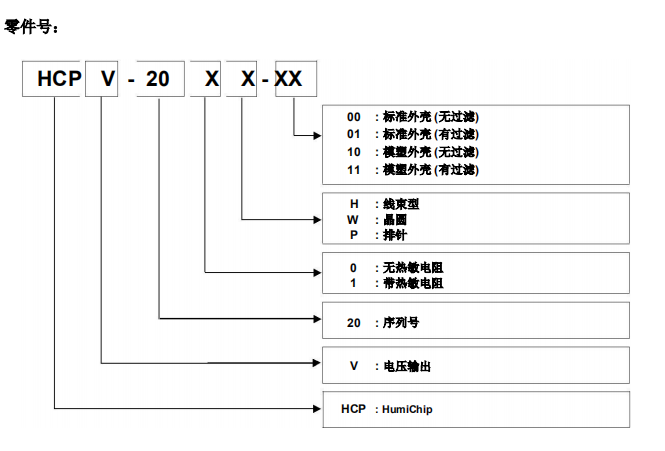

Korea Samyoung voltage output temperature and humidity sensor module HCPV-201W-01, replacement for HTG3535CH, selection:
