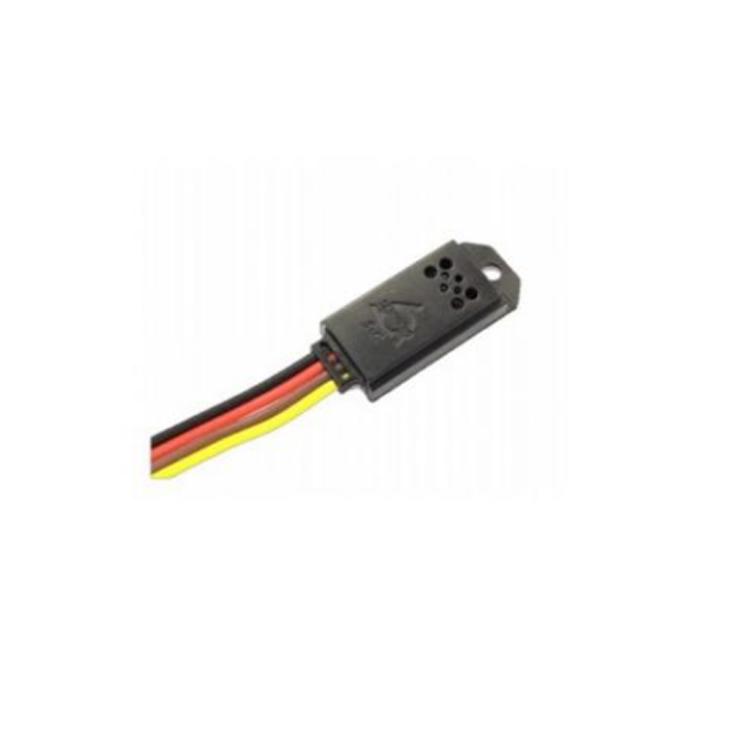

Korean SAMYOUNG voltage output temperature and humidity sensor - HCPV-301H-10
Linear & calibrated %RH voltage output
SMD NTC with internal electrodes
Robust and reliable molded packaging
Designed for durability and easy installation
Customizable accuracy
Product introduction
Korean SAMYOUNG voltage output temperature and humidity sensorHCPV-301H-10 Product overview:
HCPV-301H-10 based on HumiChipⅡ® chip is a precise and reliable humidity measurement sensor module.
The sensor outputs temperature-compensated humidity values via linear voltage, which can be directly connected to a microcontroller with ADC input. The molded packaging and reinforced connection between sensor and wiring harness ensure reliable and durable performance even in harsh environments.
Korean SAMYOUNG voltage output temperature and humidity sensorHCPV-301H-10 Features:
Linear & calibrated %RH voltage output
SMD NTC with internal electrodes
Robust and reliable molded packaging
Designed for durability and easy installation
Customizable accuracy

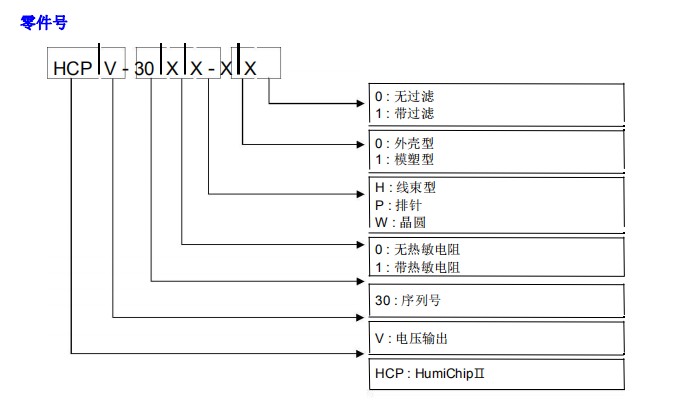

Korean SAMYOUNG voltage output temperature and humidity sensorHCPV-301H-10 Selection:
Korean SAMYOUNG voltage output temperature and humidity sensorHCPV-301H-10 parameters:
| Electrical parameters |
Symbol |
Value |
Unit |
| Supply voltage |
Vcc |
5.0 |
V |
| Current consumption |
Icc |
1.5 |
㎃ |
| Environmental parameters |
Ts |
-40 ~ 85 |
℃ |
| Operating temperature range |
Ts |
-40 ~ 85 |
℃ |
| Storage temperature range |
Tstg |
-55 ~ 125 |
℃ |
| Operating humidity range |
RH |
0 ~ 100 |
%RH |
