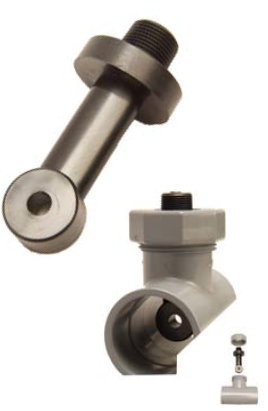

US Sensorex Toroidal Conductivity Sensor - TCS3000 and 3020 Series

1. Description of Toroidal Conductivity Sensors TCS3000 and 3020 Series

Choose TCS3020 for use with SENSOREX TCSMa or TCSTX toroidal transmitters.

TCS3000 sensors can be connected to many toroidal controllers and transmitters.

This SENSOREX TCS series toroidal inductive conductivity sensor is suitable for measuring solutions that are highly corrosive and prone to clogging. It avoids the pollution and corrosion problems commonly encountered with general conductivity sensors, thus providing better stability and greatly reducing maintenance costs.

2. Features of Toroidal Conductivity Sensors TCS3000 and 3020 Series

Resistant to coating, corrosion, and scaling
Durable Noryl (modified polyphenylene oxide) construction
Easy installation, custom T-fitting for pipe mounting
Connects to Sensorex TCSMA, TCSTX, Rosemount, or Foxboro devices

3. Specifications of Toroidal Conductivity Sensors TCS3000 and 3020 Series:

Measurement Range: TCS3020 and TCS3000 - 0-2,000,000 uS/cm

Body Material: Noryl, PEEK available in the future

Temperature up to 105 degrees C***

Pressure: 150 psig

Temperature Compensation: User-specified temperature element or -P1K for TCSMA and TCSTX transmitters

Cable Length: 6 meters, 6-core with shield

Process Connection: 3/4" MNPT immersion, 2" with A1001/1002 adapter standard tee

Note: The 105°C specification applies only to the sensor. When used with the FC95C flow cell, the maximum temperature is 80°C.
