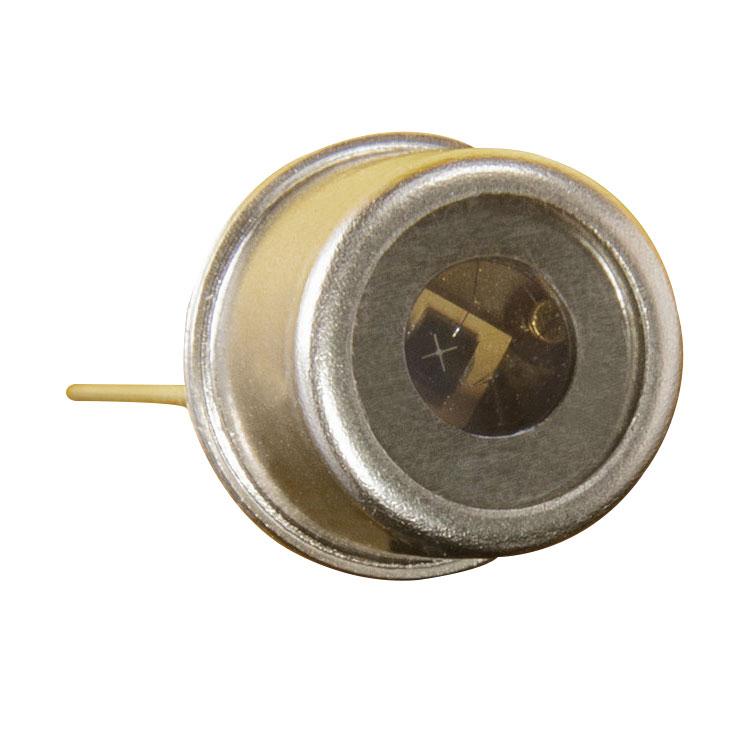

German SGLUX Silicon Carbide UV Photodiode - SG01L–A5
1. Uses silicon carbide (SiC) material
2. Suitable for UVA band
3. Effective detection area 1.0mm2
4. Peak irradiance of 10uW/cm2 generates approximately 3.7nA current
5. High chip stability (certified by German PTB)
Product Introduction
I.Silicon Carbide UV PhotodiodeSG01L–A5 Features:
1. Uses silicon carbide (SiC) material
2. Suitable for UVA band
3. Effective detection area 1.0mm2
4. Peak irradiance of 10uW/cm2 generates approximately 3.7nA current
5. High chip stability (certified by German PTB)
About Silicon Carbide (SiC) Material:
SiC can withstand extreme radiation hardness, visible blindness, low dark current, high-speed response, and low noise; these features make SiC an excellent material for visible-blind UV detectors. SiC detectors can operate at temperatures up to 170°C, and the temperature coefficient of the signal (responsivity) is also very low, <0.1%/K. Due to low noise (dark current at fA level), very low UV radiation intensities can be reliably measured (with an appropriate amplifier).
SiC photodiodes can be used as unfiltered broadband detection devices or with optical filters, providing response to UVA, UVB, and UVC bands.
II. Silicon Carbide UV Photodiode SG01L–A5 Technical Parameters:
| Model |
SG01L-A5 |
SG01L-A18 |
| Spectral Characteristics |
||
| Responsivity |
0.037A/W |
0.037A/W |
| Wavelength Typical Value |
331nm |
331nm |
| Wavelength Range (S=0.1*Smax) |
309-367nm |
309-367nm |
| Visible Blindness (Smax/S>405nm) |
>1010 |
>1010 |
| General Characteristics (25°C) |
||
| Effective Detection Area |
1.0mm2 |
1.0mm2 |
| Dark Current (1V Reverse Bias) |
3.3fA |
3.3fA |
| Capacitance |
250pF |
250pF |
| Short-Circuit Current (10uW/cm2 Peak Irradiance) |
Approximately 3.7nA |
Approximately 3.7nA |
| Temperature Coefficient |
<0.1%/K |
<0.1%/K |
| Ratings |
||
| Operating Temperature |
-55～+170℃ |
-55～+170℃ |
| Storage Temperature |
-55～+170℃ |
-55～+170℃ |
| Soldering Temperature (3S) |
260℃ |
260℃ |
| Reverse Voltage VRmax |
20V |
20V |
| Physical Characteristics |
T05 metal package sealed, 1 pin insulated, 1 pin grounded |
T018 metal package sealed, 1 pin insulated, 1 pin grounded |
III. Silicon Carbide UV Photodiode SG01L–A5 Application Areas：
Mainly used for flame control (industrial boilers), water treatment (UV intensity insurance), UV astronomy (array detection), projectile tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices, oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetics tools), UV lamp intensity testing (disinfection efficiency verification in medical devices or household disinfection cabinets), etc.
