Product Introduction

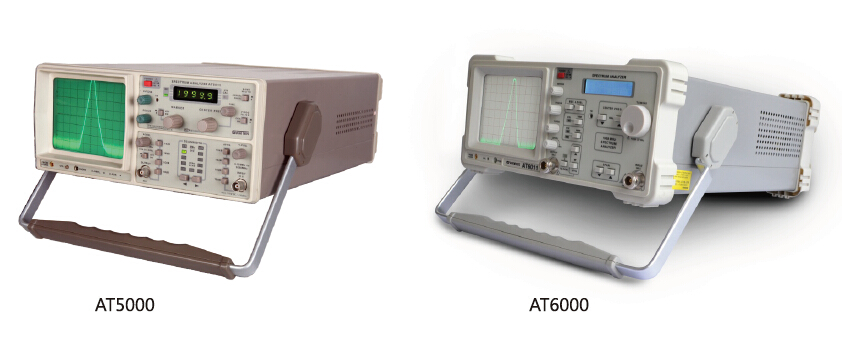

I. Description of Economical Spectrum Analyzers AT5000/AT6000 Series:
The AT5000/AT6000 series are economical spectrum analyzers with frequency coverage from 500MHz to 1GHz, and can be equipped with a tracking signal generator. They are widely used in electronic manufacturing, R&D design, RF teaching, maintenance, installation, and related fields. They can test spectrum parameters such as signal frequency, amplitude, signal distortion, modulation degree, spectral purity, frequency stability, and intermodulation distortion.
II. AT5000 Features and Benefits:
Lightweight and portable
Frequency range: 0.15-1050MHz
4.5-digit digital display (center frequency 10.1MHz resolution)
-100 to +13dBm amplitude range, 20kHz, 400kHz IF bandwidth, and 4kHz video filter
Tracking generator (only for AT5011)
Output amplitude: +0 to -50dBm (50Ω)
Sweep width range: zero span and 1-1000MHz (1-2-5 steps)
III. AT6000 Features and Benefits:
Lightweight and portable
Uses high-frequency stable PLL local oscillator
Frequency range: 0.15-500MHz/1050MHz
6.5-digit digital display (center frequency 0.01MHz resolution)
-100 to +13dBm amplitude range, 20kHz, 400kHz IF bandwidth, and 4kHz video filter
Tracking generator (only for AT6011)
Output amplitude: +0 to -50dBm (50Ω)
Sweep width range: zero span and 1-500MHz/1000MHz (1-2-5 steps)
IV.Economical Spectrum AnalyzersAT5000/AT6000 Series Technical Specifications
