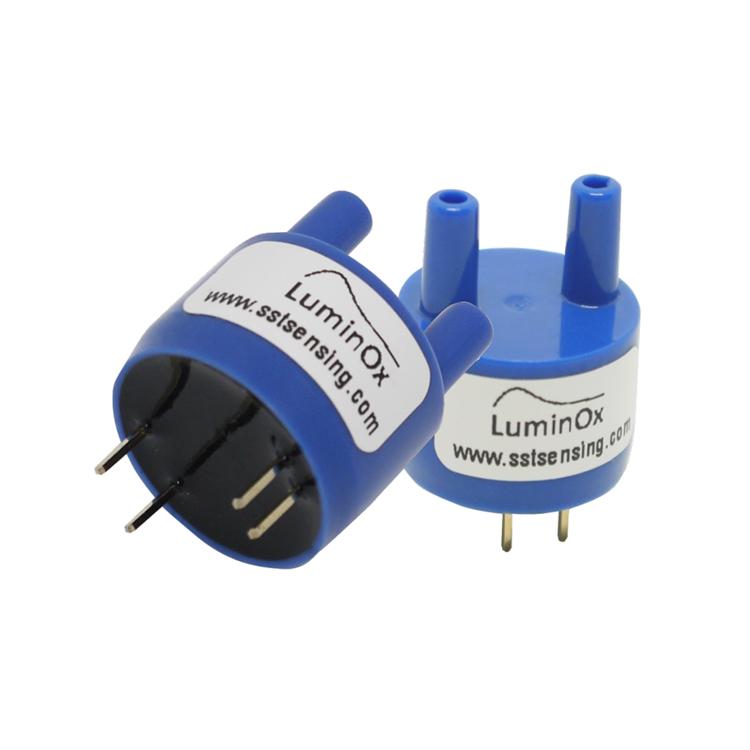

Product Introduction
I. Advantages of UK SST Fluorescent Oxygen Sensor (O2 Sensor) LOX-02-F:
Integrated temperature and pressure/altitude compensation
Minimal cross-sensitivity to other gases (oxygen quenching fluorescence is highly selective)
Complies with RoHS and REACH standards
Digital output (standard 3.3V UART) for easy communication
Allows output of multiple values: oxygen concentration (%), ppO2 (mbar), temperature, atmospheric pressure measurements
No external signal conditioning circuit required (can communicate directly with a microcontroller)
Low power consumption
Compact size
Minimal sensitivity to pressure changes and pulses
Sensor lifetime is not affected by exposure to higher oxygen concentrations due to the sensing principle
Each sensor is factory calibrated at operating temperature and oxygen pressure
II. Performance of UK SST Fluorescent Oxygen Sensor (O2 Sensor) LOX-02-F:
| Parameter | |
| Range |
0-25% (O2%) or 0-300mbar (ppO2) |
| High accuracy |
2%FS |
| Response time |
T90<10S |
| Operating voltage |
4.5-5.5V (5V recommended) Average current: <7.5mA |
| Output signal |
RS232 TTL level USART |
III. Application fields of UK SST Fluorescent Oxygen Sensor (O2 Sensor) LOX-02-F:
Plateau oxygen detection
Oxygen monitoring in power switchgear
Incubation equipment, infant incubators, incubators
Fire prevention
Ventilators
Inerting
Medical
Laboratory equipment
3D printing
IV. Matching circuit board for UK SST Fluorescent Oxygen Sensor (O2 Sensor) LOX-02-F:

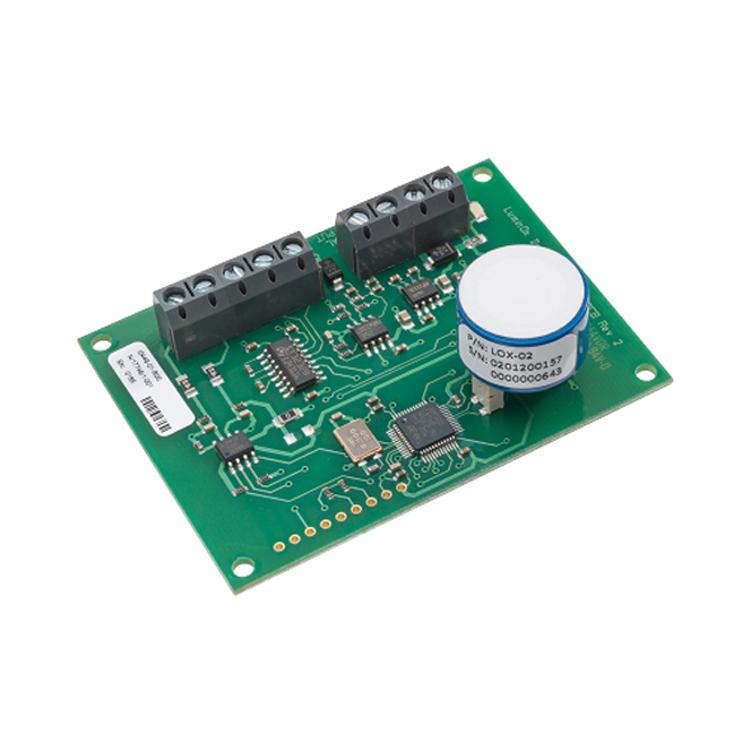

UK SST Fluorescent Oxygen Sensor Evaluation Board - LOX-EVB
LOX-EVB is the evaluation board for the fluorescent oxygen sensor LOX-02, powered by 5V, with outputs: RS485, RS232, 0~5V, convenient for customer development.
