Product Introduction
UK SST Level Switch Level Sensor LLHT Series Features:
Level switch that can detect almost any liquid type; oil-based or water-based
Suitable for harsh environments; rugged stainless steel housing and crystal glass sensing head
Terminal wiring options
UK SST Level Switch Level Sensor LLHT Series Advantages:
Suitable for corrosive environments
Extreme temperatures
LED output indication
UK SST Level Switch Level Sensor LLHT Series Parameters:
| Supply Voltage (Vs) |
12VDC~30VDC |
| Supply Current (Is) |
25mA max. |
| Output Sink and Source Current (Iout) |
200mA max. |
| Operating Temperature |
LLHT187:-25°C~+100°C LLHT287:-25°C~+140°C |
| Storage Temperature |
-25°C~+80°C |
| Housing Material |
Stainless steel and Simax crystal glass head |
| Sensor Terminals |
M12 Brad Harrison connector or PUR 3x0.25mm, 2m cable |
| Output Value |
|
| Output Voltage (Vout) Vs =12—30VDC |
lout = 200mA |
| Output High |
Vout = Vs - 1.5V max |
| Output Low |
Vout = 0V + 0.5V max |

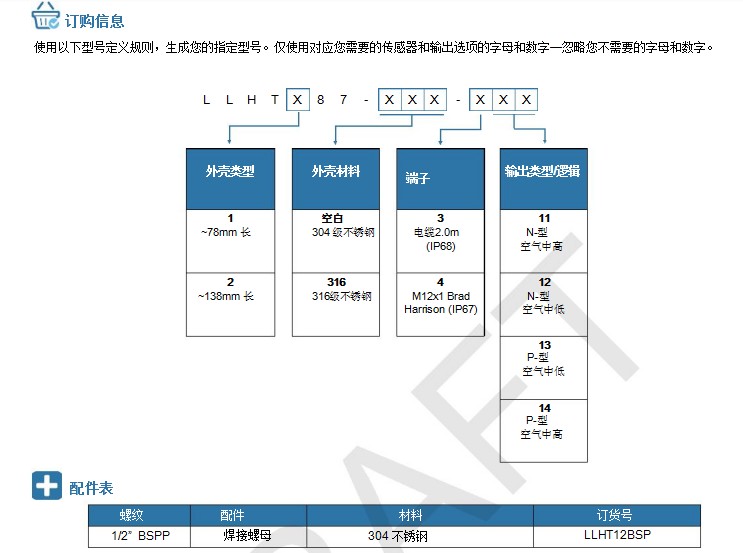

UK SST Level Switch Level Sensor LLHT Series Selection:
