UK SST Level Switch Level Sensor Optomax Industrial Glass Series - LLG Series
Level switch that detects the presence or absence of oil-based or water-based liquids
Corrosion-resistant, 316L stainless steel housing and hardened glass sensing head; suitable for harsh environments
Compact, wide operating temperature and pressure range, optional mounting threads and terminal connections
Product Introduction
UK SST Level Switch Level Sensor Optomax Industrial Glass Series LLG Series Features:
Level switch that detects the presence or absence of oil-based or water-based liquids
Corrosion-resistant, 316L stainless steel housing and hardened glass sensing head; suitable for harsh environments
Compact, wide operating temperature and pressure range, optional mounting threads and terminal connections
UK SST Level Switch Level Sensor Optomax Industrial Glass Series LLG Series Advantages:
DC high current switching
Industrial supply voltage
Direct load drive design
High voltage
High temperature
UK SST Level Switch Level Sensor Optomax Industrial Glass Series LLG Series Applications:
Tank level control; filling/emptying
Leak detection
Pump control
Oil sump level switch
Overflow protection
UK SST Level Switch Level Sensor Optomax Industrial Glass Series LLG Series Parameters:
| Supply Voltage (Vs) |
4.5VDC ~15.4VDC 8VDC ~30VDC |
| Supply Current (Is) |
2.5mA max. (Vs = 15.4VDC) 7.5mA max. (Vs = 30VDC) |
| Output Sink and Source Current (Iout) |
Up to 1A |
| Operating Temperature |
-40°C ~+125°C (-40°F ~+257°F) |
| Storage Temperature |
-40°C ~+125°C (-40°F ~+257°F) |
| Operating Pressure |
0 ~600bar (0 ~8700psi) |
| Housing Material |
316L stainless steel, glass head |
| Sensor Terminals |
20AWG, 250mm PVDF wire, or 22AWG PVC cable or M12 connector |
| Output Value |
|
| Output Voltage (Vout) Vs = 4.5—15.4VDC
|
lout =1A |
| Output High |
Vout = Vs - 1.5V max |
| Output Low |
Vout = 0V + 0.5V max |

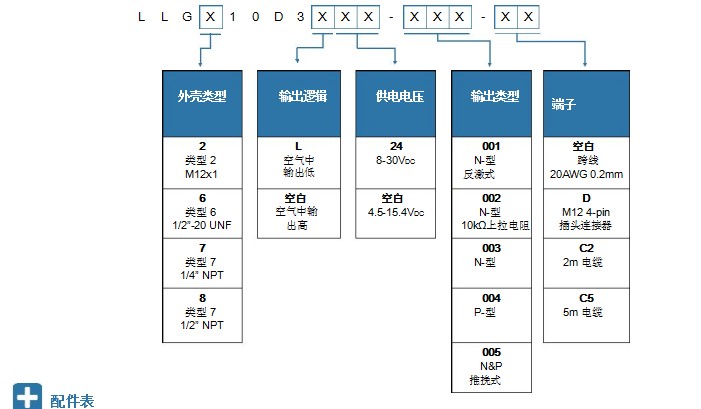

UK SST Level Switch Level Sensor Optomax Industrial Glass Series LLG Series Selection:
