Product Introduction
UK SST Level Switch Level Sensor Optomax Industrial Series Features:
High Power
Industrial supply voltage
Direct load drive design
Smart Switch
High Temperature
UK SST Level Switch Level Sensor Optomax Industrial Series Applications:
Valve/Pump Control
Leak Detection
Tank Level Control; Fill/Empty
Overflow Protection
Oil Sump Level Switch
UK SST Level Switch Level Sensor Optomax Industrial Series Parameters:
| Supply Voltage (Vs) |
4.5VDC ~15.4VDC， 8VDC -30VDC |
| Supply Current (Is) |
2.5mA max. (Vs = 15.4VDC) 7.5mA max. (Vs = 30VDC
|
| Operating Temperature |
Standard: -25°C ~ +80°C Enhanced: -40°C ~ +125°C |
| Storage Temperature |
Standard: -30°C ~ +85°C Enhanced: -40°C ~ +125°C |
| Housing Material |
Polysulfone or Trogamid® b |
| Sensor Terminals |
20AWG, 250mm PVDF wire, or 22AWG PVC cable. |
| Output Value |
|
| Output Voltage (Vout) |
lout = 1A |
| Output High |
Vout = Vs - 1.5V max |
| Output Low |
Vout = 0V + 0.5V max |

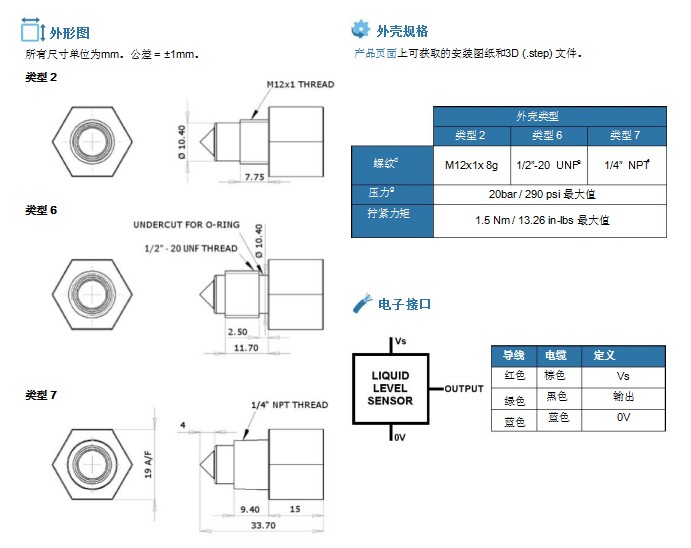

UK SST Level Switch Level Sensor Optomax Industrial Series Dimensions:

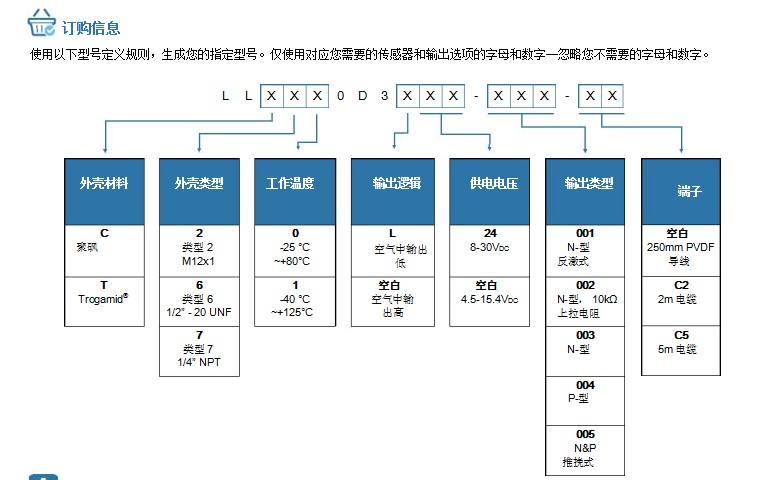

UK SST Level Switch Level Sensor Optomax Industrial Series Selection:
