Product Introduction

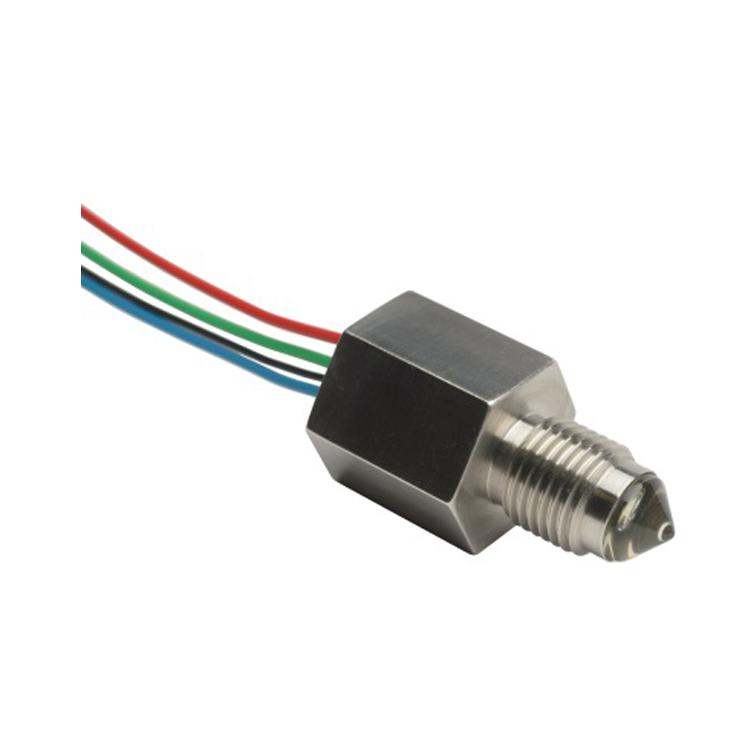

1. Features of Photoelectric Liquid Level Sensor/Switch LLG210D3L24-003
Can detect almost all liquids, oil or water
Suitable for harsh environments, rugged stainless steel
Optional mounting threads
2. Advantages of Photoelectric Liquid Level Sensor/Switch LLG210D3L24-003
Suitable for high-pressure environments
Suitable for corrosive environments
Direct load drive
3. Technical Parameters of Photoelectric Liquid Level Sensor/Switch LLG210D3L24-003
| Supply Voltage (Vs) | 8VDC~30VDC |
| Supply Current (Is) | 7.5mA(Vs=30VDC) |
| Output and Source Current (Iout) | 1A |
| Operating Temperature | Standard: -25°C~80°C |
| Extended: -40°C~125°C | |
| Storage Temperature | Standard: -30°C~85°C |
| Extended: -40°C~125°C | |
| Operating Pressure | 0~85bar |
| Housing Material | Stainless steel housing, glass probe |
| Sensor Rear End | 20AWG, 250mm PTFE wire, 8mm tinned |
| Output Voltage (Vout): | Iout=1A |
| Vs=8~30VDC | |
| Output High Level | Vout=Vs-1.8V |
| Output Low Level | Vout=0V+0.7V |
