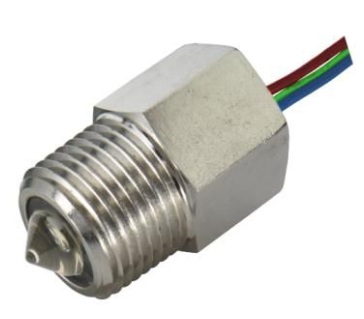

UK SST Corrosion-Resistant Photoelectric Liquid Level Sensor/Photoelectric Liquid Level Switch - LLG810D3-003

1. Description of Photoelectric Liquid Level Sensor/Switch LLG810D3-003:

LLG810D3-003 is a corrosion-resistant stainless steel photoelectric liquid level switch suitable for xylene solvents, electrolyzed water, and other applications. It offers better performance and lower price than GEMS ELS-1150.

2. Features of Photoelectric Liquid Level Sensor/Switch LLG810D3-003

Can detect almost all liquids, oil or water
Suitable for harsh environments, rugged stainless steel
Optional mounting threads

3. Advantages of Photoelectric Liquid Level Sensor/Switch LLG810D3-003
Suitable for high-pressure environments
Suitable for corrosive environments
Direct load drive

4. Industries for Photoelectric Liquid Level Sensor/Switch LLG810D3-003

Critical level monitoring for hydraulic oil and lubricating oil in machine tools, compressors, refrigerants, and other industrial OEM applications;

Ideal for corrosive liquids: acids, solvents, electrolyzed water;

Medical equipment: anesthesia, pathological tissue processing, embedding machines.

5. Technical Parameters of Photoelectric Liquid Level Sensor/Switch LLG810D3-003

Supply Voltage (Vs)	4.5VDC~15.4VDC
Supply Current (Is)	2.5mA(Vs=15.4VDC)
Output and Source Current (Iout)	1A
Operating Temperature	Standard: -25°C to 80°C
	Extended: -40°C to 125°C
Storage Temperature	Standard: -30°C to 85°C
	Extended: -40°C to 125°C
Operating Pressure	0~85bar
Housing Material	Stainless steel housing, glass probe
Sensor Rear	20AWG, 250mm PTFE wire, 8mm tinned
Output Voltage (Vout):	Iout=1A
Vs=4.5~15.4VDC
Output High Level	Vout=Vs-1.5V
Output Low Level	Vout=0V+0.5V
