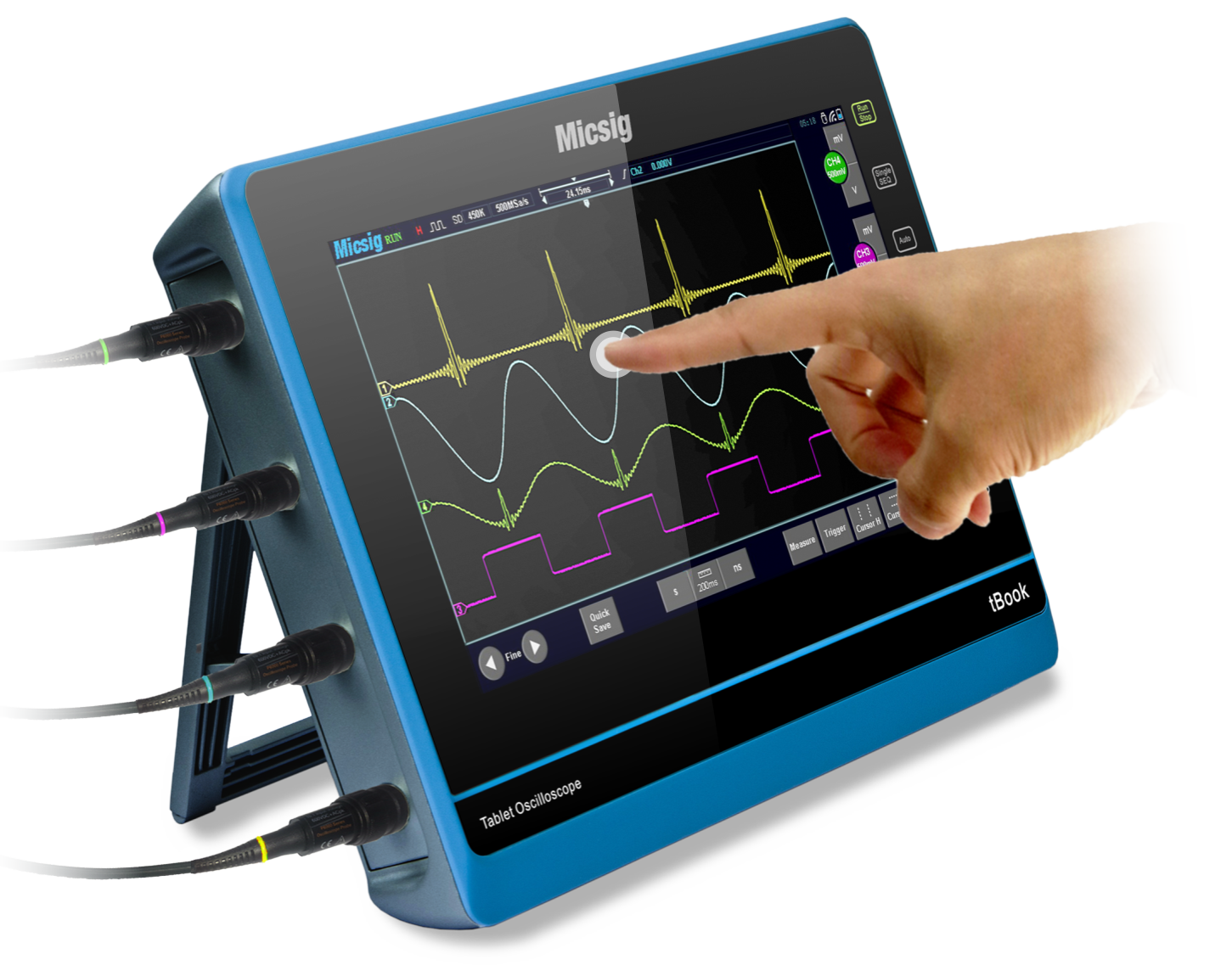

tBook Tablet Oscilloscope - TO104, TO104A

1. Description of tBook Tablet Oscilloscope TO104, TO104A

While inheriting the functions of traditionaldigital oscilloscopesand adopting the concept of touch-based test instruments, it pioneered thetablet oscilloscope(Tablet Oscilloscope) tBook, widely used in many fields such as automotive, communications, military, power, and education. Before this, no oscilloscope in the world could get rid of the messy buttons until the birth of tBook. It turns out that the complex operations of an oscilloscope can also be touch-controlled, lightweight, simple, and fast.

tablet oscilloscopetBook features a tablet design with full touch operation, simplifying complexity. All oscilloscope operations are completed through finger taps and swipes, making it more user-friendly and providing a brand new experience.

tablet oscilloscopetBook offers bandwidth options of 100-200MHz, sampling rates of 1-2GSa/s, equipped with a 10.1-inch multi-touch display with 1024*600 ultra-high resolution, an extremely high waveform capture rate of up to 500,000 times per second, ultra-long storage depth of up to 90Mpts, and a total of 31 automatic measurement types. It supports USB Host and USB Device ports, and eliminates the worries of aging and failure of buttons and knobs, ensuring a longer lifespan.

With meticulous R&D technology and honest and responsible service attitude, Micah Signal tablet oscilloscope will become your ideal first-choice brand.

Accurate, novel, safe, simple, sensitive, portable -- Micah Signal tablet oscilloscope, one touch away, at your fingertips!



2. Features of tBook Tablet Oscilloscope TO104, TO104A

Tablet design, full touch operation, simplicity in complexity, brand new experience
10.1" display with 1024*600 resolution, clearly presenting waveform details
A total of 31 automatic measurement types, quickly selectable on the screen
13000mAh lithium battery, providing up to 7 hours of battery life (optional)
Ultra-long storage depth, allowing observation of both the overall signal and details
Complete all oscilloscope operations through finger taps and swipes, more user-friendly
Extremely high waveform capture rate, 'seeing' abnormal waveforms invisible to ordinary oscilloscopes
50Ω input impedance function, compatible with 50Ω probes for clearer and more accurate waveform display
60mm ultra-thin body, 1.77kg weight for easy movement and portability
No worries about aging and failure of buttons and knobs, longer lifespan



3. Parameters of tBook Tablet Oscilloscope TO104, TO104A

Model	TO102	TO102A	TO152	TO152A	TO202	TO202A
	TO104	TO104A	TO154	TO154A	TO204	TO204A
Bandwidth	100MHz	100MHz	150MHz	150MHz	200MHz	200MHz
Rise Time	<=3.5ns	<=3.5ns	<=2.3ns	<=2.3ns	<=1.75ns	<=1.75ns
Real-time Sampling Rate	1GSa/s	2GSa/s	1GSa/s	2GSa/s	1GSa/s	2GSa/s
Storage Depth	18Mpts	90Mpts	18Mpts	90Mpts	18Mpts	90Mpts
Waveform Capture Rate	250,000 times/second	500,000 times/second	250,000 times/second	500,000 times/second	250,000 times/second	500,000 times/second
Number of Channels	50,000wfms/s
Display	10.1" TFT LED multi-point capacitive touch screen, resolution: 1024*600
Operation	Mouse, multi-touch: tap, swipe, drag, pinch/spread
Time Base Range	1G sampling rate: 2ns/div to 1000s/div, 2G sampling rate: 1ns/div to 1000s/div
Vertical Resolution	8bit
Vertical Scale Coefficient	2mV/div to 5V/div
Trigger Types	Edge, pulse width, logic
Automatic Measurements	Period, frequency, rise time, fall time, delay, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, burst pulse width, positive overshoot, negative overshoot, phase, peak-to-peak, amplitude, high value, low value, maximum, minimum, RMS, average, periodic average, etc., 31 types in total
Math Functions	+，-，*，/，FFT
FFT Window Functions	Rectangular, Hamming, Blackman-Harris, Hanning
Input/Output Interfaces	USB Host，USB Deivice
Built-in Storage	4G
Dimensions and Weight	275mm*210mm*60mm，1770g
