Product Introduction
I. Features and Applications of F1811 Compression Load Cell

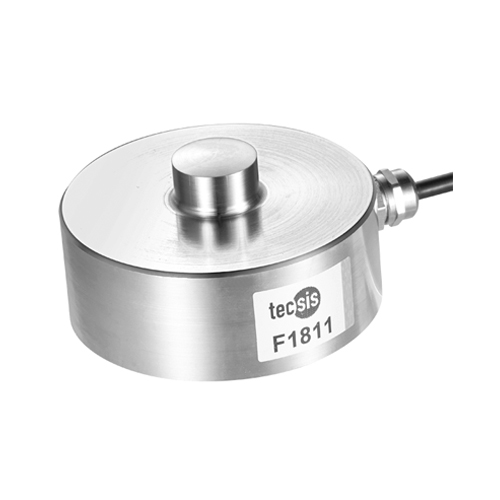

• Low-profile load cell with disc design.
• Diameter 82mm~165mm, relatively heavy.
• Specifically designed for low-height pressure measurement, columnar structure.
• Made of stainless steel with fully welded stainless steel sealing cover.
• Protection class IP67, waterproof and moisture-proof, suitable for corrosive environments.
• Range: 0.25t~100t.
• Compact structure, easy installation, widely used including testing and weighing systems.
• Can be used individually or in multiple sets, can be paired with display instruments to convert to desired output signals.
• Used in truck scales, platform scales, silos, and other weighing systems.
II. F1811 Compression Load Cell Parameters
| Output Sensitivity | 1.5±10%mV/V |
| Zero Output | ± 2 % F.S. |
| Nonlinearity | 0.1 % F.S. |
| Hysteresis | 0.1 % F.S. |
| Repeatability | 0.1 % F.S. |
| Creep (30 minutes) | 0.1 % F.S. |
| Temperature Sensitivity Drift | 0.05 % F.S. / 10°C |
| Zero Temperature Drift | 0.05 % F.S. / 10°C |
| Input Resistance | 750 ± 10Ω |
| Output Resistance | 700 ± 5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 10 V |
| Maximum Excitation Voltage | 15 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200 % F.S. |
| Cable Size | Ø5 x 5000 mm |
| Protection Class | IP67 |
