Product Introduction

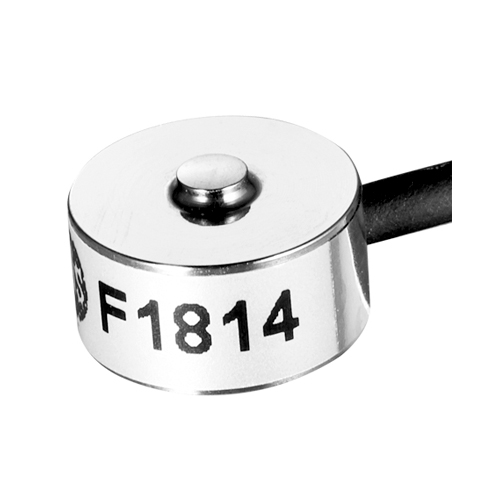

I.Features and Applications of F1814 Compression Load Cell
• Miniature sensor using metal foil strain gauge technology.
• Stainless steel material
• Specifically designed for low-profile compression force measurement.
• Measuring range from 3kg to 100kg.
• Cable length 3m.
• Diameter 10mm.
• Equipped with an adjustable resistor on the outside.
• Suitable for force measurement in small spaces such as pressure holding equipment, key feel testers, press pressure detection, robot gripper force, etc.
II.Features and Applications of F1814 Compression Load Cell
| Output Sensitivity | 1.0±10% mV / V |
| Nonlinearity | 1 %F.S. |
| Hysteresis | 0.5 %F.S. |
| Repeatability | 0.5 %F.S. |
| Temperature Sensitivity Drift | 0.36 %F.S./10°C |
| Zero Temperature Drift | 0.18 %F.S./10°C |
| Input Resistance | 1000±10Ω |
| Output Resistance | 1000±5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 5 V |
| Maximum Excitation Voltage | 7 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 120 %F.S. |
| Ultimate Overload | 150 %F.S. |
| Cable Dimensions | Ø2 x 3000 mm |
| Protection Class | IP64 |
