Product Introduction

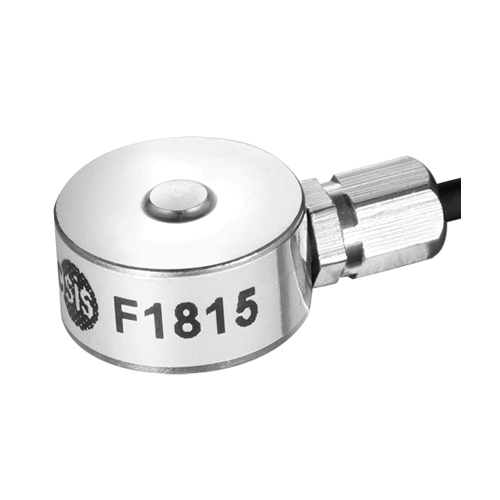

I. Features and Applications of F1815 Compression Load Cell
• Miniature sensor using metal foil strain gauge technology.
• Made of stainless steel material.
• Specifically designed for low-profile pressure measurement.
• Equipped with an adjustable resistor on the outside of the sensor.
• Range: 5kg~200kg.
• Cable length: 3m.
• Diameter: 13mm.
• Suitable for force measurement in various small spaces, widely used in industrial, R&D and other fields for measurement and control.
• Suitable for pressure holding equipment, mobile phone assembly force, key feel testers, press pressure detection, robot grip force, etc.
II. F1815 Compression Load Cell Parameters
| Output Sensitivity | 1.5±10% mV / V |
| Nonlinearity | 0.5 %F.S. |
| Hysteresis | 0.5 %F.S. |
| Repeatability | 0.1 %F.S. |
| Temperature Sensitivity Drift | 0.36 %F.S. / 10°C |
| Zero Temperature Drift | 0.18 %F.S. / 10°C |
| Input Resistance | 350±10Ω |
| Output Resistance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 5 V |
| Maximum Excitation Voltage | 7 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 120 %F.S. |
| Ultimate Overload | 150 %F.S. |
| Cable Size | Ø2 x 3000 mm |
| Protection Class | IP64 |
