Product Introduction

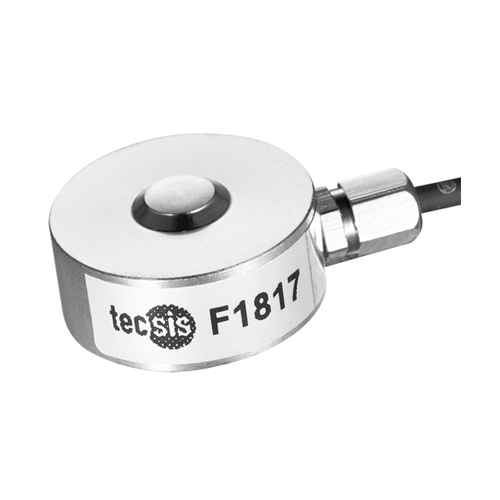

I. Features and Applications of F1817 Compression Load Cell
• Stainless steel miniature sensor
• Designed for low-profile force measurement
• Range 5kg~1t
• Cable length 3m
• Customizable
• Protection rating IP64
• Widely used in detection or weighing systems, and can be placed inside the device for force measurement.
• Suitable for force measurement in small spaces, applicable to pressure holding equipment, mobile phone assembly force, key feel testers, press pressure detection, robot phone force, etc.
II. F1817 Compression Load Cell Parameters
| Output Sensitivity | 1.5±10% mV / V |
| Zero Output | ±2 % F.S. |
| Nonlinearity | 1 %F.S. |
| Hysteresis | 0.25 %F.S. |
| Repeatability | 0.25 %F.S. |
| Temperature Sensitivity Drift | 0.36 %F.S. / 10°C |
| Zero Temperature Drift | 0.18 %F.S. / 10°C |
| Input Resistance | 350±10Ω |
| Output Resistance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 5 V |
| Maximum Excitation Voltage | 10 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 120%F.S. |
| Ultimate Overload | 200% F.S. |
| Cable Size | Ø2 x 3000 mm |
| Protection Rating | IP64 |
