Product Introduction

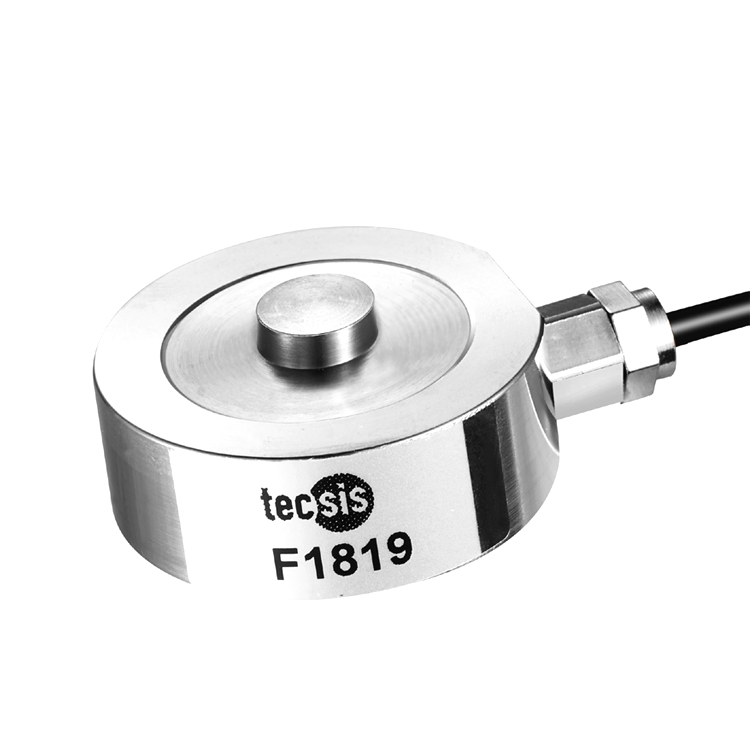

I. Features and Applications of F1819 Compression Load Cell
• Designed for low-profile compression force measurement.
• Compact structure, suitable for various testing and weighing systems, R&D and other industrial measurement fields.
• Range 50N ~120KN.
• Cable length 3m.
• Made of stainless steel, fully sealed stainless steel cover, suitable for various harsh environments.
• Compact structure, low profile.
• Customizable appearance.
• Used in press-fitting machinery, bearing assembly machinery, wheel axle identification.
• Dynamic stamping equipment instantaneous force detection and control.
• Dynamic weight control for hopper scales and tank scales.
II. F1819Compression Load CellFeatures and Applications
| Output Sensitivity | 1.5±10% mV / V |
| Zero Output | ± 2 %F.S. |
| Nonlinearity | 0.5 %F.S. |
| Hysteresis | 0.5 %F.S. |
| Repeatability | 0.5 %F.S. |
| Creep (30 minutes) | 0.5 %F.S. |
| Temperature Sensitivity Drift | 0.05 %F.S. / 10°C |
| Zero Temperature Drift | 0.05 %F.S. / 10°C |
| Input Resistance | 385±10Ω |
| Output Resistance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 5~10V |
| Maximum Excitation Voltage | 15 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 120 %F.S. |
| Ultimate Overload | 200 %F.S. |
| Cable Size | Ø3 x 3000 mm |
| Protection Class | IP66 |
