Product Introduction

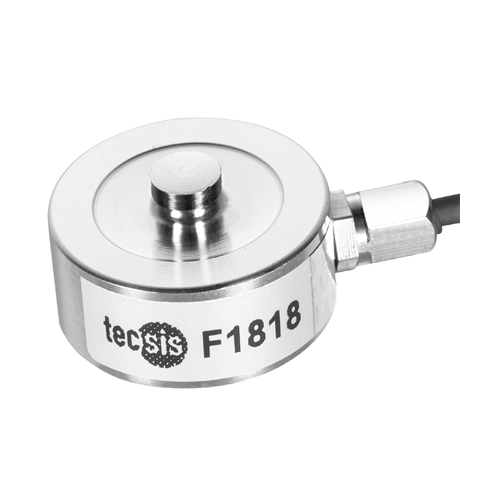

I.F1818Load Cell Description:
F1818 compression load cell: compact size, low profile, small deflection; stainless steel material; customizable; suitable for force measurement in small spaces, widely used in industrial and R&D measurement and control.
II.F1818Load Cell Features and Applications:
• Miniature sensor, compact size
• Designed for low-profile force measurement
• Metal foil strain gauge miniature sensor
• Compact structure, low profile
• Capacity: 5kg~2t
• Cable length: 3 meters
• Made of stainless steel
• Fully sealed welding with stainless steel cover, suitable for harsh environments.
• Wide applications, including detection or weighing systems, and can be placed in devices for force measurement. Suitable for force measurement in small spaces.
• Suitable for pressure holding equipment, mobile phone assembly force, key feel testers, press pressure detection, robot grip force, etc.
III.F1818Load Cell Parameters:
| Output Sensitivity | 1.5±10% mV / V |
| Zero Output | ± 2 % F.S. |
| Nonlinearity | 0.5 % F.S. |
| Hysteresis | 0.5 % F.S. |
| Repeatability | 0.1 % F.S. |
| Temperature Sensitivity Drift | 0.36 % F.S. / 10ºC |
| Zero Temperature Drift | 0.18 % F.S. / 10ºC |
| Input Resistance | 350±30Ω |
| Output Resistance | 350±5Ω |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Excitation Voltage | 5 V |
| Max Excitation Voltage | 10 V |
| Temperature Compensation Range | -10 ~ 60°C |
| Operating Temperature Range | -20 ~ 80°C |
| Safe Overload | 150% F.S. |
| Ultimate Overload | 200 % F.S. |
| Cable Size | Ø2×3000 mm |
| Protection Class | IP64 |
