Product Introduction
Swiss Teviso Nuclear Radiation Sensor Detects Alpha Beta Particles Gamma RaysAL53 Description:
AL53The center of the radiation sensor is a customPINdiode, covered with tin foil, making it insensitive to light. An integrated pulse discriminator with temperature-compensatedthreshold provides a trueT TLsignal output.AL53Capable of detectingα andβ particles andγ rays.
AL53The performance of solid-state sensors combined with ultra-low power consumption makes it an idealchoice for the most advanced new designs as well as upgrading existing designs.
Swiss Teviso Nuclear Radiation Sensor Detects Alpha Beta Particles Gamma RaysAL53 Features and Benefits:
Detects alpha (Am-241), beta (C-14)andGamma rays
Ultra-low power requirement (25 µA)
Detector sensitivity: 5 cpm/µSv/h
Highly immune to RFand electrostatic fields
Wide temperature range (-30 °C ~ 60 °C)Linear response on
Swiss made
Swiss Teviso Nuclear Radiation Sensor Detects Alpha Beta Particles Gamma RaysAL53 Applications:
Medical environment radioactivity detection equipment
Radiation monitors for nuclear safeguards and security
Detection of illegal substances
Natural science courses and practical laboratory experiments
Swiss Teviso Nuclear Radiation Sensor Detects Alpha Beta Particles Gamma RaysAL53 Parameters:
| Absolutezuimaximum ratings |
|
| Supply voltage, VCC to GND |
18.0 V |
| Output short-circuit current |
Continuous |
| Storage temperature range |
-65 °C ~ 100 °C |
| Electrical parameters |
|
| Unless otherwise specified, at ： VCC = 4.0 V, TA = 25 °C |
|
| Dose rate detection range |
0.1 µSv/h ~ 100 mSv/h |
| Pulse count rate |
5 cpm ± 15% for 1 µSv/h Radiation dose rate |
| Energy response |
50 keV ~ 10 MeV Above |
| Output pulse level |
Equal to supply voltage (Forward) |
| Output pulse width |
50 μs ~ 200 μs (Low→High→Low) |
| Supply voltage range, VCC |
2.5 V ~ 12.0 V |
| Supply current, IS |
25 µA TYP |
| Operating temperature range |
-30 °C ~ 60 °C |
| Sensor characteristics |
|
| PIN Diode active area |
13 mm2 |
| Window |
Aluminum 9.5 x 9.5 x 0.01 mm |

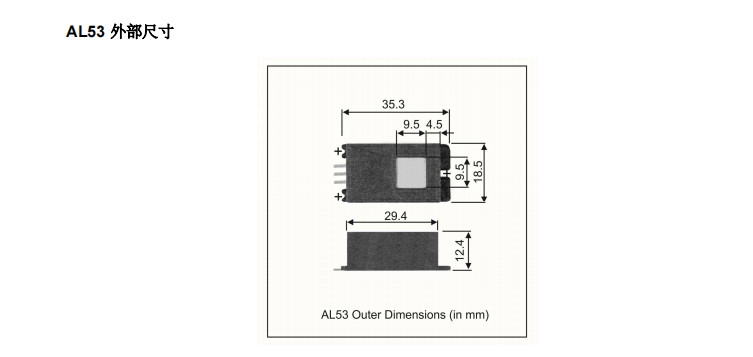

Swiss Teviso Nuclear Radiation Sensor Detects Alpha Beta Particles Gamma RaysAL53 Dimensions:
