Product Introduction
UV-Meter Description

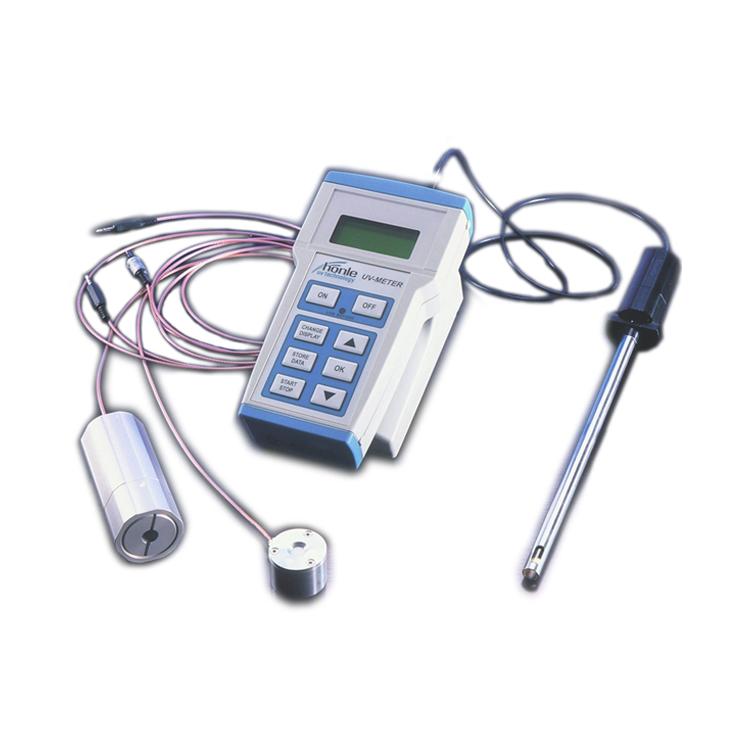

The handheld 'Honle UV-METER' measures precise data traceable to the German standard PTB (Physikalisch Technische Bundesanstalt). The unit is available in basic or high-end versions. Different sensors cover wavelengths from 230 nm to 550 nm - UVC, UVB, UVA, and VIS.
The UV meter features a wide range of interchangeable sensors, making it suitable for various manufacturing processes. Sensors are available for UV point sources and surface irradiation equipment.
UV-Meter System Features
• PTB-traceable results
• Wide sensor range
UV-Meter Options
• Data storage
• Dual-channel measurement
• Control and evaluation of measurement data via PC or PLC
• UV-LED measuring head
UV-Meter Advantages
• Cost savings - a single UV meter for all applications
• Measurement accuracy - UV-METER traceable to PTB standards
• Process reliability - constant UV intensity control ensures consistent UV curing and drying
• Reliable calibration via certificate
UV-Meter Applications
• UV curing of inks and coatings
• UV curing of adhesives and potting compounds
• Surface disinfection via UVC radiation
UV-MeterParameters:
| Spectrum |
Maximum intensity |
| UVC (230 nm - 285 nm) |
2 W/cm2 |
| UVB (290 nm - 330 nm) |
2 W/cm2 |
| UVA (330 nm - 400 nm) |
5 W/cm2 |
| VIS (380 nm - 550 nm) |
2 W/cm2 |
| LED (265 nm - 485 nm) |
20 W/cm2 |
