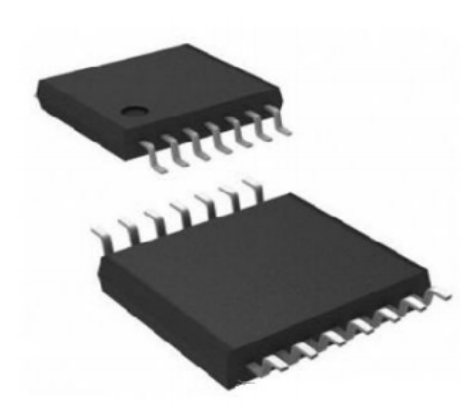

Video Driver Amplifier - MS6365T

5-channel 6th-order 10MHz filter
Transparent input clamping
6dB gain output driver and drives dual video loads
AC or DC coupled input, input voltage range includes ground
AC or DC coupled output
Single supply voltage range from 2.5V to 5.5V
Low power consumption, total operating current 84mA, single channel 17.8mA
TSSOP14 package

Model: MS6365T

Product Description

MS6365Tis a5channel video buffer with integrated6dBgainrail-to-rail output driver and6order output reconstruction filter.MS6365TThe-3dBbandwidth is10MHzslew rate is46V/us。MS6365TCompared to passiveLC filterwith external driver solutions, it provides better image quality. It operates from a single supplyrange of+2.5Vto+5.5Vand has very low operating current84mAmaking it very suitablefor battery-powered applications.

MS6365TThe input signal isDACoutput, can be DC coupled orAC coupled input. Internal diode clamping and bias circuits can be used for AC coupled inputmode.MS6365TIt also includes internal level shift circuitry, avoiding sync pulsesbeing clipped and allowing DC coupled output.MS6365TThe output can drive DC orAC coupled single (150Ω) or dual (75Ω) loads.MS6365TIt is available inTSSOP14package,ESDprotection up to8KV。

I. Features of Video Driver Amplifier-MS6365T:

II. Applications of Video Driver Amplifier-MS6365T：

Video amplifiers, consumer video, personal video recorders

Cable and satellite set-top boxes, standard definition TV

Communication equipment, projectors, slide projectors
