Video Driver Amplifier - MS7337M
Single-channel 6th-order 81MHz (FHD) filter
Transparent Sync-tip input clamp
6dB gain output driver and drives dual video loads
Rail-to-rail output
Input voltage range to ground
AC or DC coupled input
AC or DC coupled output
Single supply range from 2.7V to 5.5V

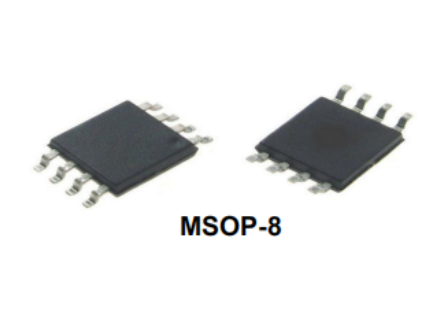

MSOP-8 package
Low power consumption, operating current 36mA
Product Introduction
MS7337MIt is a chip that integrates a single-channel video amplifier and video coaxial line control decoding.The video amplifier internally integrates6dBgain rail-to-rail output driver and6order filter,-3dBwith bandwidth up to81MHz。
I. Features of Video Driver Amplifier - MS7337M:
Single-channel 6th-order 81MHz (FHD) filter
Transparent Sync-tip input clamp
6dB gain output driver and drives dual video loads
Rail-to-rail output
Input voltage range to ground
AC or DC coupled input
AC or DC coupled output
Single supply range from 2.7V to 5.5V
MSOP-8 package
Low power consumption, operating current 36mA
II. Applications of Video Driver Amplifier - MS7337M：
