Product Introduction

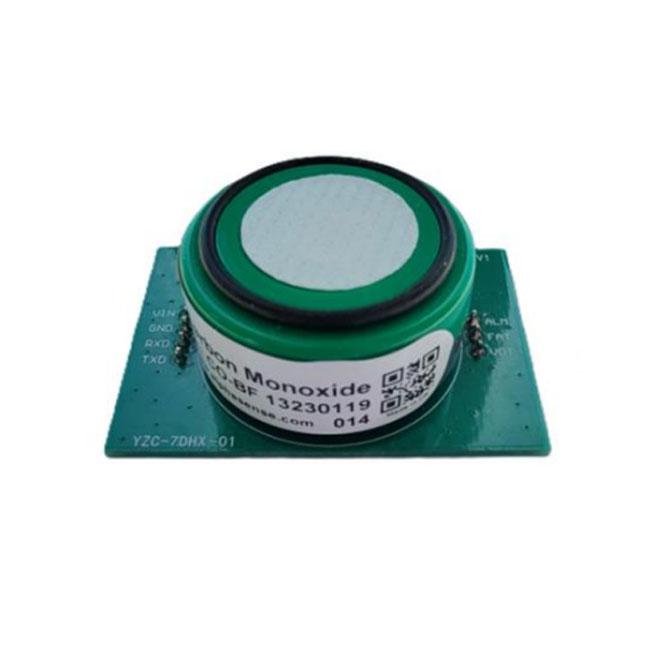

AG-4 Template with alpha B Series Sensor Module Reference DocumentationDescription:
The AG-4 template with alpha B series sensor module consists of an electrochemical sensor and a data acquisition and processing board. By configuring different sensor models, it can detect various toxic and harmful gases in the environment such as CO, H2S, NO2, etc.
The module uses Alphasense B series electrochemical sensors as sensitive elements, and detects gas concentration under the control of the sampling circuit. The module is pre-calibrated before leaving the factory and has good stability and selectivity. This module has a built-in temperature sensor.
AG-4 Template with alpha B Series Sensor Module Reference DocumentationParameters:
| Product Model |
AG-4-GSB-MA7S |
| Detected Gas |
CO, H2S, NO2 and other toxic and harmful gases |
| Detection Principle |
Electrochemical |
| Range |
See corresponding sensor datasheet for details |
| Resolution |
See corresponding sensor datasheet for details |
| Measurement Error |
<±5%FS |
| Operating Voltage |
DC（3.2-5.5）V |
| Operating Current |
≤500uA@5V |
| Output Method |
UART (+3.3V TTL level) |
| Operating Temperature |
-20℃ ~ +55℃ |
| Operating Humidity |
0% ~ 90%RH (non-condensing) |
| Operating Pressure |
1 ± 0.1 atm |
| Storage Temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=49mm*34mm*26mm |
| Expected Sensor Life |
See corresponding sensor datasheet for details |
