Food and feed near-infrared online moisture meter manufacturer | Production line non-destructive online moisture detection equipment - AMT-SFY-HW

1. Food and feed near-infrared online moisture meter manufacturer | Product introduction for production line non-destructive online moisture detection equipment

The near-infrared online moisture meter is aNon-contact, non-destructive, continuous real-time moisture content detection equipment, based on the principle of near-infrared spectral absorption-diffuse reflectance of water molecules. The probe is installed above belt conveyors, chutes, or dryer discharge outlets. No sampling or material contact is required, with millisecond-level real-time moisture reading. It can directly interface with PLC and DCS control systems to achieve closed-loop automatic control of drying and humidification processes, eliminating the lag of offline laboratory analysis, stabilizing product moisture content, and reducing drying energy consumption. It is a dedicated instrument for intelligent moisture management in industrial production lines.

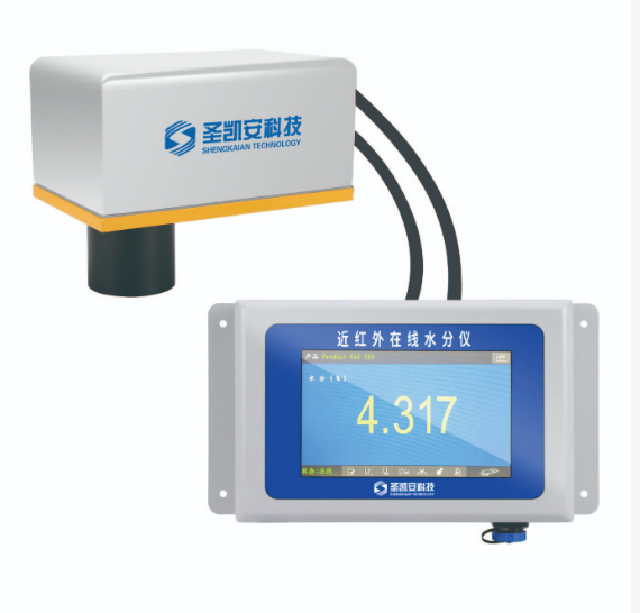

The entire equipment consists ofDetection probe + control host + signal cableComposed of three parts; supports multi-material curve storage, temperature and dust compensation, adapting to harsh workshop conditions such as dust, high temperature, and high humidity, with 24-hour continuous operation.

Core principle: Water molecules absorb specific bands of near-infrared light. The instrument emits a light source to irradiate the material surface, receives reflected light signals, and calculates the material moisture content value through built-in algorithm models. Detection processNo damage to materials, no consumables.

2. Food and feed near-infrared online moisture meter manufacturer | Main functions of production line non-destructive online moisture detection equipment

1. Real-time continuous detection: Continuous measurement of dynamic materials on the production line, real-time display of moisture content, fast response speed, no detection delay
2. Non-contact non-destructive measurement: Probe does not touch material, no sample loss, no material contamination
3. Multi-material curve storage: Built-in multiple calibration curves, one-click switching between different materials, one machine for multiple uses
4. Intelligent compensation algorithm: Temperature compensation, dust compensation, material color/thickness compensation, reducing environmental interference, stable measurement
5. Real-time data output: 4-20mA analog, RS485-Modbus digital signal, interfacing with PLC, industrial control screens, and host computer systems. Can be linked to dryers for automatic adjustment of drying parameters, enabling closed-loop control of production line moisture.
6. Data storage and traceability: Historical moisture data saved, report export, production quality records traceable
7. Over-limit alarm: Sound and light alarm when moisture is above/below the set threshold, timely warning of non-conforming materials
8. Touch operation: Host color touch screen, parameter settings, curve calibration, and real-time data viewing are simple and convenient
9. Remote monitoring(Optional): Supports IoT cloud platform, remote viewing of production line moisture data via computer or mobile phone
10. No frequent maintenance required: Probe window comes with purge interface (optional), reducing dust adhesion and cleaning frequency

3. Food and feed near-infrared online moisture meter manufacturer | Technical parameters for production line non-destructive online moisture detection equipment (universal standard version, modifiable as needed)

Table

Item	Parameter specifications
Measurement principle	Near-infrared diffuse reflectance spectroscopy
Measurement moisture range	0-60% (customizable range 0-100% based on material)
Measurement accuracy	±0.1% to ±0.5% (affected by material type and surface condition)
分辨率	0.01%
Repeatability	≤±0.2%
Response time	Millisecond level, 0-60s adjustable filtering time
Measurement spot diameter	Φ60‑90mm
Standard measurement distance	250mm±100mm (installation height adjustable)
信号输出	4‑20mA、RS485（Modbus‑RTU）
Calibration curves	Up to 100 material curve storage
Display screen	7-inch industrial touch screen
Probe protection level	IP65
Working environment temperature	0℃‑50℃
Ambient humidity	5-90% RH, non-condensing
Power supply	AC220V 50Hz
安装方式	Bracket installation, above belt/chute
Explosion-proof version	Customizable explosion-proof type (Ex)

4. Food and feed near-infrared online moisture meter manufacturer | Industry applications and applicable materials for production line non-destructive online moisture detection equipment

1. Grain and feed industry

Wheat, corn, rice, flour, soybean meal, pellet feed, premix, straw, etc.; moisture monitoring in drying sections and belt conveyors to stabilize finished feed moisture and reduce mold risk.

2. Lithium battery / new energy materials

Lithium iron phosphate, lithium carbonate, graphite powder, anode materials, ceramic powder; online moisture control of dried powder discharge to ensure battery material quality.

3. Chemical powder industry

Fertilizer, urea, calcium carbonate, titanium dioxide, inorganic salts, resin powder, pigments; real-time moisture monitoring on production lines to reduce caking.

4. Food processing

Starch, white sugar, milk powder, tea, nuts, seasonings, fruit and vegetable powders; non-destructive testing to ensure food safety.

5. Tobacco industry

Tobacco leaves, cut tobacco, redrying production lines; closed-loop moisture control for humidification and drying processes.

6. Building materials, mining, and coal

Coal, limestone, slag, sand, clay; moisture detection on belt conveyors to optimize drying and calcination processes.

7. Papermaking and wood

Online moisture monitoring for wood chips, sawdust, pulp, cardboard, and paper coating.

8. Textile

Online moisture detection for yarn, fabric, and non-woven fabrics.
