Product Introduction
Laser Methane SensorAG-6-CH4-28M2 Description:
The AG-6-CH4-28M2 mining laser methane sensing module (hereinafter referred to as the sensing module) is developed based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology. It uses a 1653.7nm laser to detect methane gas through characteristic 'fingerprint' absorption, resistant to water vapor and other gas interference. The sensing module adopts a folded optical path design, with long absorption path, high detection sensitivity and accuracy; ultra-low power consumption design, with 0-100%VOL full-range detection and temperature and pressure compensation correction, strong environmental adaptability; universal threaded mounting interface and communication interface design, strong applicability. As a core component of methane gas monitoring instruments,
it can be widely used for methane gas leak detection and alarm in coal mines, non-coal mines, and industrial chemical fields.
Laser Methane SensorAG-6-CH4-28M2 Features:
Precise Temperature Control Detection
Water Vapor Resistant Design
Low Power Consumption Design
Real-time Temperature and Pressure Compensation
Explosion-proof Design

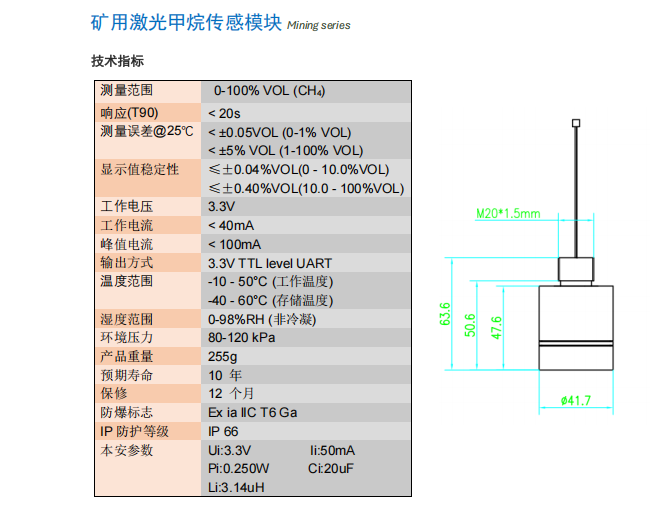

Laser Methane SensorAG-6-CH4-28M2 Parameters:
