Product Introduction
Laser Methane SensorAG-6-CH4-2822-A Description:
The AG-6-CH4-2822-A laser methane sensor is developed based on Tunable Diode Laser Absorption Spectroscopy (TD-LAS) technology. It detects methane gas concentration using direct absorption spectroscopy based on the absorption characteristics of methane molecules at the 1653.7nm infrared 'fingerprint' spectrum. The sensor adopts a folded optical path structure design, featuring long absorption path, high detection sensitivity and accuracy, and resistance to water vapor and other gas interference. Additionally, it utilizes laser and photodetector components with excellent low-temperature performance combined with a wide-temperature compensation algorithm, ensuring strong environmental adaptability. The standard threaded mounting interface and standard communication protocol design provide high versatility.
As a core component of methane gas detectors/monitors, this product is widely used in leak detection and alarm systems in underground spaces, catering, industrial chemical, and coal mining sectors.
Calibration-Free

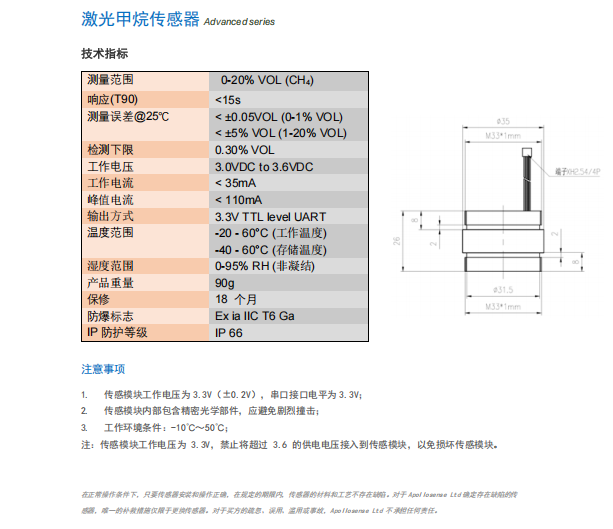

Laser Methane SensorAG-6-CH4-2822-A Parameters:
